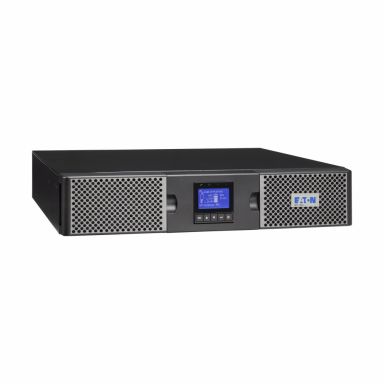

Eaton 9PX1500IRTNBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 A
0 Reviews
| Add your review
In Stock
|
£1543.74
£1852.49 (Inc. VAT)
| Power | |
|---|---|
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 1500 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 92.5% |
| Power factor | 1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output power capacity | 1.5 kVA |
| Efficiency (ECO mode) | 97.5% |
| ECO mode | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Power protection features | Overdischarge |
| Noise level | 35 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 1500 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 92.5% |
| Power protection features | Overdischarge |
| Power factor | 1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 35 dB |
| Output power capacity | 1.5 kVA |
| Efficiency (ECO mode) | 97.5% |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| USB port type | USB Type-B |
| Battery | |
| Number of batteries supported | 4 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 5 min |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black- Silver |
| Certification | UL 1778 cULus Listed EAC IEC/EN 62040-1 IEC/EN 62040-2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | CE- ENERGY STAR |
| Weight & dimensions | |
| Weight | 19.4 kg |
| Width | 550 mm |
| Height | 240 mm |
| Depth | 580 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable- Serial- USB cable |
| Rack mount kit | Yes |
| Certificates | |
| Certification | UL 1778 cULus Listed EAC IEC/EN 62040-1 IEC/EN 62040-2 |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable- Serial- USB cable |
| Rack mount kit | Yes |
Eaton 9PX1500IRTNBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 A
