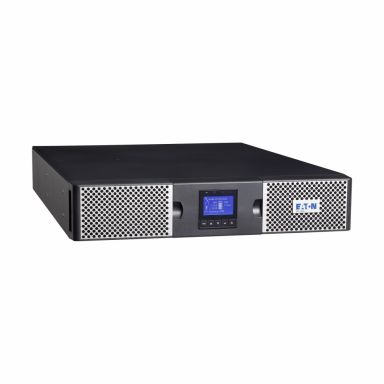

Eaton 9PX2200IRT2UBS uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2200 W 10
In Stock
|
$1530.10
$1836.12 (Inc. VAT)
Power
Output power factor
1
Input power factor
0.99
Output power
2200 W
Input operation voltage (min)
100 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
93.5%
Power factor
1
Output power capacity
2.2 kVA
Efficiency (ECO mode)
98%
ECO mode
Yes
Ports & interfaces
Cable length
1.8 m
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
10 AC outlet(s)
AC outlet types
C13 coupler- C19 coupler
Power plug
C20 coupler
Serial ports quantity
1
USB port type
USB Type-B
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
1
Number of input phases
1
LED indicators
Yes
Power protection features
Overdischarge
Noise level
40 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
1
Number of input phases
1
Output power factor
1
Input power factor
0.99
Output power
2200 W
Input operation voltage (min)
100 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
93.5%
Power protection features
Overdischarge
Power factor
1
Noise level
40 dB
Output power capacity
2.2 kVA
Efficiency (ECO mode)
98%
ECO mode
Yes
Input frequency
40/70 Hz
Battery
Number of batteries supported
6
Battery voltage
12 V
Battery capacity
7 Ah
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
3 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Rack capacity
2U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Certification
TUV cULus CSA 22.2 FCC 15 /B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC
Cable length
1.8 m
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 96%
Storage relative humidity (H-H)
0 - 96%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Sustainability compliance
Yes
Sustainability certificates
CE- ENERGY STAR
Weight & dimensions
Weight
19.3 kg
Width
550 mm
Height
240 mm
Depth
580 mm
Packaging data
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
Yes
Certificates
Certification
TUV cULus CSA 22.2 FCC 15 /B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC
Packaging content
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
Yes
