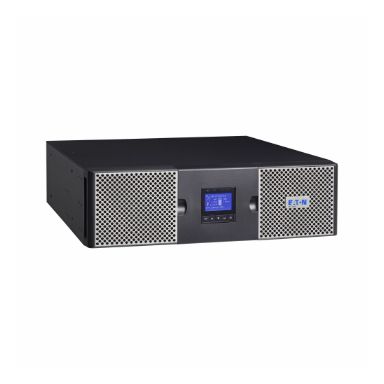

Eaton 9PX2200IRT3UBS uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2200 W 8
In Stock
|
$1595.47
$1914.56 (Inc. VAT)
Power
Output power factor
1
Input power factor
0.99
Output power
2200 W
Input operation voltage (min)
100 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
93.5%
Power factor
1
Output voltage Total Harmonic Distortion (THD)
3%
Output power capacity
2.2 kVA
Efficiency (ECO mode)
98%
Ports & interfaces
Cable length
1.8 m
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C20 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
1
Number of input phases
1
Power protection features
Overdischarge
Noise level
40 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
1
Number of input phases
1
Output power factor
1
Input power factor
0.99
Output power
2200 W
Input operation voltage (min)
100 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
93.5%
Power protection features
Overdischarge
Power factor
1
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
40 dB
Output power capacity
2.2 kVA
Efficiency (ECO mode)
98%
Input frequency
40/70 Hz
Battery
Number of batteries supported
6
Battery voltage
12 V
Battery capacity
7 Ah
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
3 min
Automatic battery test
Yes
Design
Form factor
Rackmount/Tower
Product colour
Black- Silver
Certification
IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC
Cable length
1.8 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 96%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Sustainability compliance
Yes
Sustainability certificates
CE- ENERGY STAR
Weight & dimensions
Weight
25.5 kg
Width
580 mm
Height
230 mm
Depth
770 mm
Packaging data
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
Yes
Certificates
Certification
IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC
Packaging content
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
Yes
