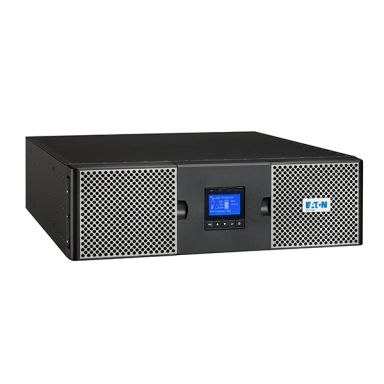

Eaton 9PX3000IRTM uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 10 AC o
In Stock
|
Call For Price
(0808 189 1246)
Power
Output power
3000 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.94%
Power factor
1
Output power capacity
3 kVA
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
LED indicators
Yes
Noise level
40 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
Output power
3000 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.94%
Power factor
1
Noise level
40 dB
Output power capacity
3 kVA
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
10 AC outlet(s)
AC outlet types
C13 coupler- C19 coupler
Power plug
C20 coupler
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
9.5 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Rack capacity
3U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Safety
IEC/EN 62040-1- UL 1778- CSA 22.2
Certification
IEC/EN 62040-1- UL 1778- CSA 22.2- IEC/EN 62040 -2- FCC Class B- CISPR22 Class B- CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Technical details
Output frequency
50/60 Hz
Sustainability certificates
ENERGY STAR
Harmonized System (HS) code
85078000
Weight & dimensions
Weight
27.4 kg
Width
440 mm
Height
130 mm
Depth
485 mm
Packaging data
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Management card included
No
Certificates
Safety
IEC/EN 62040-1- UL 1778- CSA 22.2
Certification
IEC/EN 62040-1- UL 1778- CSA 22.2- IEC/EN 62040 -2- FCC Class B- CISPR22 Class B- CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Eaton 9PX3000IRTM uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 10 AC o
