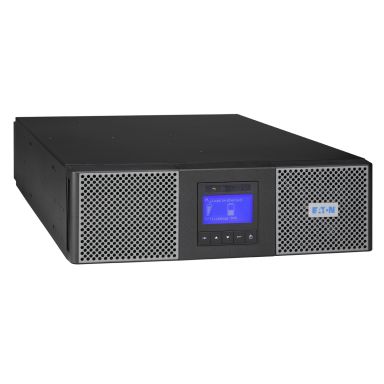

Eaton 9PX5KIRTN uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4500 W 11 AC out
In Stock
|
$4070.62
$4884.74 (Inc. VAT)
Power
Output power
4500 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
94%
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
2%
Input current Total Harmonic Distortion (THD)
5%
Crest factor
3:1
Output power capacity
5 kVA
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
LED indicators
Yes
Noise level
45 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
Output power
4500 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
94%
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
45 dB
Input current Total Harmonic Distortion (THD)
5%
Crest factor
3:1
Output power capacity
5 kVA
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
AC outlets quantity
11 AC outlet(s)
AC outlet types
C13 coupler- C19 coupler- Terminal
Power plug
Terminal
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
13 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Rack capacity
3U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Safety
IEC/EN 62040-1- UL 1778
Certification
IEC/EN 62040-1- UL 1778- IEC/EN 62040 -2- FCC Class A- IEC/EN 62040-3 (Performance)- CE- CB report (TUV)- UL
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Technical details
Output frequency
50/60 Hz
Sustainability certificates
ENERGY STAR
Harmonized System (HS) code
85078000
Weight & dimensions
Weight
48 kg
Width
440 mm
Height
130 mm
Depth
685 mm
Packaging data
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Management card included
Yes
Logistics data
Harmonized System (HS) code
85078000
Certificates
Safety
IEC/EN 62040-1- UL 1778
Certification
IEC/EN 62040-1- UL 1778- IEC/EN 62040 -2- FCC Class A- IEC/EN 62040-3 (Performance)- CE- CB report (TUV)- UL
Other features
Interface
USB- RS232
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
