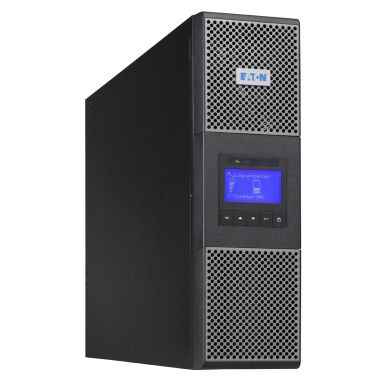

Eaton 9PX6KIBP uninterruptible power supply (UPS) Double-conversion (Online) 6000 VA 5400 W 6 AC outlet(s)
In Stock
|
$4118.03
$4941.64 (Inc. VAT)
Specifications
Power
Output power
5400 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.94
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
0.02
Input current Total Harmonic Distortion (THD)
0.05
Output power capacity
6000 VA
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
LED indicators
Yes
Noise level
45 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
Output power
5400 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.94
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
0.02
Noise level
45 dB
Input current Total Harmonic Distortion (THD)
0.05
Output power capacity
6000 VA
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
AC outlets quantity
6 AC outlet(s)
AC outlet types
C13 couplerC19 couplerTerminal
Power plug
Terminal
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
11 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Rack capacity
3U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Safety
IEC/EN 62040-1 UL 1778
Energy Star certified
Yes
Display
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Technical details
Output frequency
50/60 Hz
Weight & dimensions
Weight
48 kg
Width
440 mm
Height
130 mm
Depth
685 mm
Packaging data
Bundled software
Intelligent Power Software suite
Management card included
No
Certificates
Safety
IEC/EN 62040-1 UL 1778
Energy Star certified
Yes
Other features
Interface
USB RS232
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Bundled software
Intelligent Power Software suite
Eaton 9PX6KIBP uninterruptible power supply (UPS) Double-conversion (Online) 6000 VA 5400 W 6 AC outlet(s)
| Length | 68.50 cm |
| Width | 44.00 cm |
| Height | 13.00 cm |
| Weight | 48.000000 kgs |
