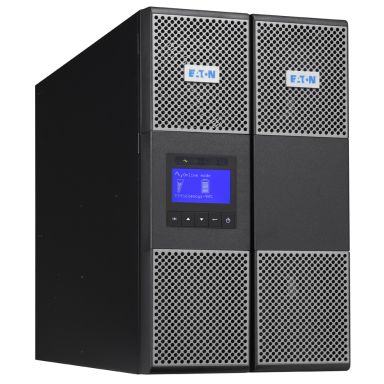

Eaton 9PX8KIBP uninterruptible power supply (UPS) Double-conversion (Online) 8000 VA 7200 W 5 AC outlet(s)
In Stock
|
$5592.43
$6710.92 (Inc. VAT)
Power
Output power
7200 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.95%
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
2%
Input current Total Harmonic Distortion (THD)
5%
Crest factor
3:1
Output power capacity
8 kVA
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
LED indicators
Yes
Noise level
48 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
Output power
7200 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.95%
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
48 dB
Input current Total Harmonic Distortion (THD)
5%
Crest factor
3:1
Output power capacity
8 kVA
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
AC outlets quantity
5 AC outlet(s)
AC outlet types
C19 coupler- Terminal
Power plug
Terminal
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
20 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Rack capacity
6U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Safety
IEC/EN 62040-1- UL 1778
Certification
IEC/EN 62040-1- UL 1778- IEC/EN 62040 -2- FCC Class A- IEC/EN 62040-3 (Performance)- CE- CB report (TUV)
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Technical details
Output frequency
50/60 Hz
Sustainability certificates
ENERGY STAR
Harmonized System (HS) code
85078000
Weight & dimensions
Weight
84 kg
Width
440 mm
Height
260 mm
Depth
700 mm
Packaging data
Bundled software
Intelligent Power Software suite
Management card included
No
Certificates
Safety
IEC/EN 62040-1- UL 1778
Certification
IEC/EN 62040-1- UL 1778- IEC/EN 62040 -2- FCC Class A- IEC/EN 62040-3 (Performance)- CE- CB report (TUV)
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Bundled software
Intelligent Power Software suite
Eaton 9PX8KIBP uninterruptible power supply (UPS) Double-conversion (Online) 8000 VA 7200 W 5 AC outlet(s)
