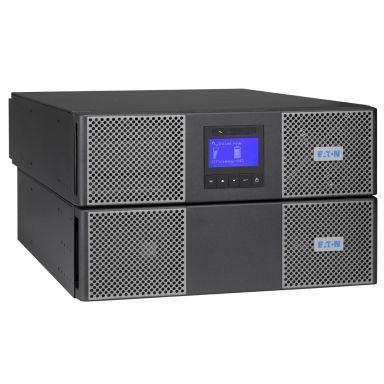

Eaton 9PX8KIRTNBP uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 7200 W 5 AC outlet(s)
In Stock
|
Call For Price
(0808 189 1246)
Power
Output power
7200 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.95%
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
2%
Crest factor
3:1
Output power capacity
8 kVA
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
LED indicators
Yes
Noise level
48 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
Output power
7200 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.95%
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
48 dB
Crest factor
3:1
Output power capacity
8 kVA
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
AC outlets quantity
5 AC outlet(s)
AC outlet types
C19 coupler- Terminal
Power plug
Terminal
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
20 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Rack capacity
6U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Safety
IEC/EN 62040-1- UL 1778
Certification
IEC/EN 62040-1- UL 1778- IEC/EN 62040 -2- FCC Class A- IEC/EN 62040-3 (Performance)- CE- CB report (TUV)
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Technical details
Output frequency
50/60 Hz
Sustainability certificates
ENERGY STAR
Harmonized System (HS) code
85078000
Weight & dimensions
Weight
84 kg
Width
440 mm
Height
260 mm
Depth
700 mm
Packaging data
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Management card included
Yes
Certificates
Safety
IEC/EN 62040-1- UL 1778
Certification
IEC/EN 62040-1- UL 1778- IEC/EN 62040 -2- FCC Class A- IEC/EN 62040-3 (Performance)- CE- CB report (TUV)
Other features
Interface
USB- RS232
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Eaton 9PX8KIRTNBP uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 7200 W 5 AC outlet(s)
