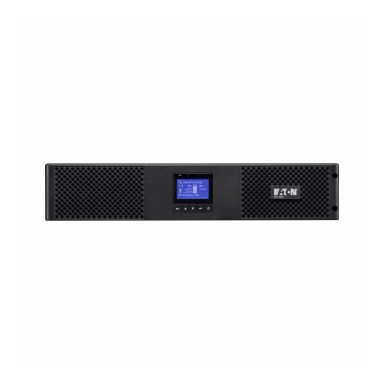

Eaton 9SX1000IRBS uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 6 AC out
0 Reviews
| Add your review
In Stock
|
£823.33
£988.00 (Inc. VAT)
| Power | |
|---|---|
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 900 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 89% |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output power capacity | 1 kVA |
| Efficiency (ECO mode) | 95% |
| ECO mode | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Power protection features | Overdischarge |
| Noise level | 41 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 900 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 89% |
| Power protection features | Overdischarge |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 41 dB |
| Output power capacity | 1 kVA |
| Efficiency (ECO mode) | 95% |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| USB port type | USB Type-B |
| Battery | |
| Number of batteries supported | 3 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 6 min |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount |
| Product colour | Black |
| Certification | TUV cULus CSA 22.2 FCC 15 / B CISPR22 / B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Sustainability certificates | CE |
| Weight & dimensions | |
| Weight | 16.1 kg |
| Width | 548 mm |
| Height | 240 mm |
| Depth | 570 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable- Serial- USB cable |
| Certificates | |
| Certification | TUV cULus CSA 22.2 FCC 15 / B CISPR22 / B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable- Serial- USB cable |
