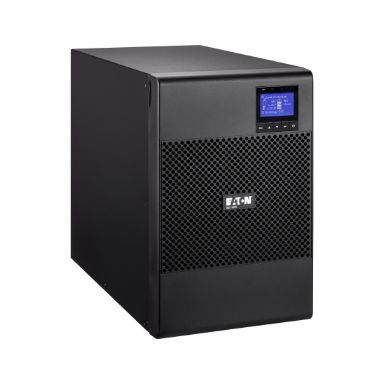

Eaton 9SX3000IBS uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC out
In Stock
|
$2049.72
$2459.66 (Inc. VAT)
Power
Output power factor
0.9
Input power factor
0.99
Output power
2700 W
Input operation voltage (min)
140 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
92.4%
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
3%
Output power capacity
3 kVA
Efficiency (ECO mode)
97.4%
ECO mode
Yes
Ports & interfaces
Cable length
1.8 m
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
9 AC outlet(s)
AC outlet types
C13 coupler- C19 coupler
Power plug
C20 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
USB port type
USB Type-B
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
1
Number of input phases
1
Power protection features
Overdischarge
Noise level
45 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
1
Number of input phases
1
Output power factor
0.9
Input power factor
0.99
Output power
2700 W
Input operation voltage (min)
140 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
92.4%
Power protection features
Overdischarge
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
45 dB
Output power capacity
3 kVA
Efficiency (ECO mode)
97.4%
ECO mode
Yes
Input frequency
40/70 Hz
Battery
Battery voltage
12 V
Battery capacity
9 Ah
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
6 min
Automatic battery test
Yes
Design
Form factor
Tower
Product colour
Black
Certification
TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC
Cable length
1.8 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 96%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Sustainability compliance
Yes
Sustainability certificates
CE
Weight & dimensions
Weight
33.8 kg
Width
320 mm
Height
490 mm
Depth
575 mm
Packaging data
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
No
Certificates
Certification
TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC
Packaging content
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
No
