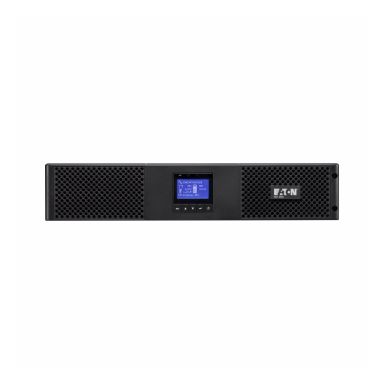

Eaton 9SX3000IRBS uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC ou
0 Reviews
| Add your review
In Stock
|
£1850.72
£2220.86 (Inc. VAT)
| Power | |
|---|---|
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 2700 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 92% |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output power capacity | 3 kVA |
| Efficiency (ECO mode) | 97.5% |
| ECO mode | Yes |
| Ports & interfaces | |
| Cable length | 1.8 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | C13 coupler- C19 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| USB port type | USB Type-B |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Power protection features | Overdischarge |
| Noise level | 45 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 2700 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 92% |
| Power protection features | Overdischarge |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 45 dB |
| Output power capacity | 3 kVA |
| Efficiency (ECO mode) | 97.5% |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Battery | |
| Number of batteries supported | 6 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 3.5 min |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Certification | TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC |
| Cable length | 1.8 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Sustainability certificates | CE |
| Weight & dimensions | |
| Weight | 34 kg |
| Width | 214 mm |
| Height | 34.6 mm |
| Depth | 412 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable- Serial- USB cable |
| Rack mount kit | Yes |
| Certificates | |
| Certification | TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable- Serial- USB cable |
| Rack mount kit | Yes |
