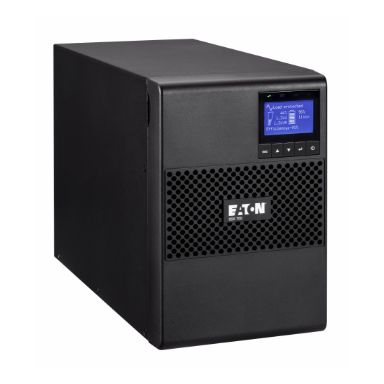

Eaton 9SX700IBS uninterruptible power supply (UPS) Double-conversion (Online) 0.7 kVA 630 W 6 AC out
In Stock
|
Call For Price
(0808 189 1246)
Power
Output power factor
0.9
Input power factor
0.99
Output power
630 W
Input operation voltage (min)
120 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
87.4%
Power factor
0.9
Output power capacity
0.7 kVA
Efficiency (ECO mode)
93%
ECO mode
Yes
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
1
Number of input phases
1
Power protection features
Overdischarge
Noise level
40 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
1
Number of input phases
1
Output power factor
0.9
Input power factor
0.99
Output power
630 W
Input operation voltage (min)
120 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
87.4%
Power protection features
Overdischarge
Power factor
0.9
Noise level
40 dB
Output power capacity
0.7 kVA
Efficiency (ECO mode)
93%
ECO mode
Yes
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
6 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Serial ports quantity
1
USB port type
USB Type-B
Battery
Number of batteries supported
2
Battery voltage
12 V
Battery capacity
9 Ah
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
5 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Form factor
Tower
Product colour
Black
Certification
IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 96%
Storage relative humidity (H-H)
0 - 96%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Sustainability compliance
Yes
Sustainability certificates
CE
Weight & dimensions
Weight
11.9 kg
Width
296 mm
Height
377 mm
Depth
570 mm
Packaging data
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
No
Certificates
Certification
IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC
Packaging content
Quick installation guide
Yes
Cables included
Input power cable- Serial- USB cable
Rack mount kit
No
Eaton 9SX700IBS uninterruptible power supply (UPS) Double-conversion (Online) 0.7 kVA 630 W 6 AC out
