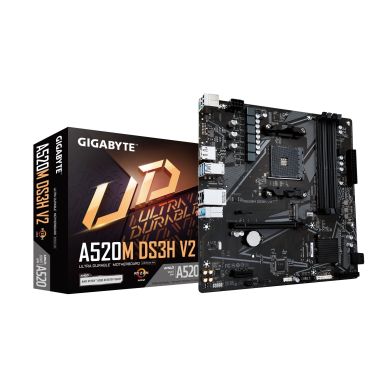

GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs

Number of M.2 (M) slots

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Total number of SATA connectors

4

Front panel connector

Yes

12V power connector

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

Serial port headers

1

Power fan connector

Yes

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of Parallel ATA connectors

0

Number of EATX power connectors

1

Front panel audio connector

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

Number of displays supported

3

Motherboard chipset family

AMD

Supported processor sockets

Socket AM4

Serial port headers

1

PC health monitoring

CPU, LED, Power supply, Temperature, Voltage

HDMI version

2.1

Cooling type

Active

Motherboard form factor

micro ATX

Component for

PC

Total number of SATA connectors

4

Maximum internal memory supported by processor

128 GB

Warranty period

3 year(s)

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64

Motherboard chipset family

AMD

RAID levels

0, 1, 10

Supported processor sockets

Socket AM4

PC health monitoring

CPU, LED, Power supply, Temperature, Voltage

Cooling type

Active

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Processor manufacturer

AMD

Maximum internal memory supported by processor

128 GB

Compatible processor series

AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series

Supported processor sockets

Socket AM4

Maximum number of SMP processors

1

Processor socket

Socket AM4

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 16GB, 32GB

Maximum internal memory

128 GB

Unbuffered memory

Yes

ECC сompatibility

ECC & Non-ECC

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 10

Number of storage drives supported

5

RAID support

Yes

Number of displays supported

3

Maximum resolution

5120 x 2880 pixels

HDCP

Yes

Discrete graphics support

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DisplayPort version

2.0

USB connector type

USB Type-A

USB 2.0 ports quantity

2

eSATA ports quantity

0

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

Microphone in

Yes

Firewire (IEEE 1394) ports

0

Headphone outputs

1

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

1

DisplayPorts quantity

1

Digital audio optical out

1

Ethernet LAN

Yes

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Power source type

ATX

Windows operating systems supported

Windows 10 x64

Motherboard chipset family

AMD

Supported processor sockets

Socket AM4

PC health monitoring

CPU, LED, Power supply, Temperature, Voltage

Cooling type

Active

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Audio chip

Realtek ALC887

Product colour

Black

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

BIOS memory size

128 Mbit

ACPI version

5.0

Clear CMOS button

Yes

System Management BIOS (SMBIOS) version

2.7

Desktop Management Interface (DMI) version

2.7

Power source type

ATX

Maximum resolution

5120 x 2880 pixels

HDCP

Yes

Discrete graphics support

Yes

Package width

265 mm

Package depth

265 mm

Package height

54 mm

Package weight

810 g

Windows operating systems supported

Windows 10 x64

Drivers included

Yes

Bundled software

Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery weight

3 g

Number of battery cells

1

Lithium weight per battery

0.07 g

Battery type

CR2032

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Height

35 mm

Package width

265 mm

Package depth

265 mm

Package height

54 mm

Package weight

810 g

Width

244 mm

Depth

244 mm

Drivers included

Yes

Cables included

SATA

Bundled software

Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility

Batteries included

Yes

Height

35 mm

Package width

265 mm

Package depth

265 mm

Package height

54 mm

Package weight

810 g
