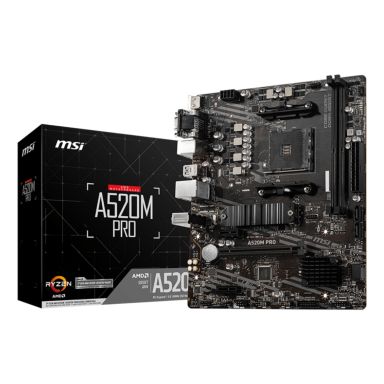

MSI A520M PRO motherboard AMD A520 Socket AM4 micro ATX
In Stock
|
$64.59
$77.51 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
1
Total number of SATA connectors
4
Front panel connector
Yes
Supported storage drive interfaces
PCI Express 3.0, SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Number of chassis fan connectors
1
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD A520
Motherboard form factor
micro ATX
Component for
PC
Total number of SATA connectors
4
Number of mounting holes
6
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Motherboard chipset family
AMD
Motherboard chipset
AMD A520
RAID levels
0, 1, 10
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
3rd Generation AMD Ryzen 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4466 MHz
Maximum internal memory
64 GB
Unbuffered memory
No
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
PCI Express 3.0, SATA
RAID levels
0, 1, 10
Graphics
Maximum resolution
4096 x 2160 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
Microphone in
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek 8111H
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Number of mounting holes
6
Motherboard chipset family
AMD
Motherboard chipset
AMD A520
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC892
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 slots
1
Power
Power source type
ATX
Video
Maximum resolution
4096 x 2160 pixels
Weight & dimensions
Height
65 mm
Weight
698 g
Width
244 mm
Depth
210 mm
Other features
Height
65 mm
Weight
698 g
MSI A520M PRO motherboard AMD A520 Socket AM4 micro ATX
