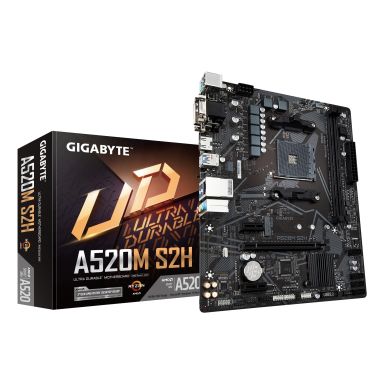

Gigabyte A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
In Stock
|
$55.70
$66.84 (Inc. VAT)
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD A520
Supported processor sockets
Socket AM4
Motherboard form factor
micro ATX
Component for
PC
Maximum internal memory supported by processor
64 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Motherboard chipset family
AMD
Motherboard chipset
AMD A520
RAID levels
0, 1, 10
Supported processor sockets
Socket AM4
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
AMD
Maximum internal memory supported by processor
64 GB
Compatible processor series
3rd Generation AMD Ryzen 3
Supported processor sockets
Socket AM4
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz
Maximum internal memory
64 GB
Storage controllers
Supported storage drive interfaces
M.2, PCI Express 3.0, SATA
RAID levels
0, 1, 10
RAID support
Yes
Graphics
HDCP
Yes
Internal I/O
Supported storage drive interfaces
M.2, PCI Express 3.0, SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Power fan connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
2
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
Network
Ethernet LAN
Yes
Features
Motherboard chipset family
AMD
Motherboard chipset
AMD A520
Supported processor sockets
Socket AM4
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Harmonized System (HS) code
84733020
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS button
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
HDCP
Yes
Packaging data
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
740 g
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Harmonized System (HS) code
84733020
Weight & dimensions
Height
35 mm
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
740 g
Width
244 mm
Depth
205 mm
Packaging content
Batteries included
Yes
Other features
Height
35 mm
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
740 g
Gigabyte A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
