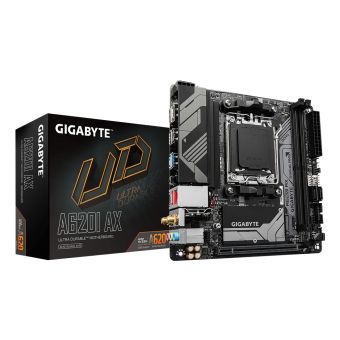

GIGABYTE A620I AX Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+1 Phases Digital VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
In Stock
|
£109.38
£131.26 (Inc. VAT)
get it next day (UK Mainland Orders)
GIGABYTE A620I AX Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+1 Phases Digital VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
Write Your Own Review
Internal I/O
Number of M.2 (M) slots
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Total number of SATA connectors
2
Front panel connector
Yes
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD A620
Supported processor sockets
Socket AM5
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Parallel processing technology support
Not supported
HDMI version
2.1
Motherboard form factor
mini ITX
Component for
PC
Total number of SATA connectors
2
Maximum internal memory supported by processor
96 GB
Warranty period
3 year(s)
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
2
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD A620
RAID levels
0, 1
Supported processor sockets
Socket AM5
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
AMD
Maximum internal memory supported by processor
96 GB
Compatible processor series
AMD Ryzen 7000 Series
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Maximum internal memory
96 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
6400 MHz
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
2
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1
Number of storage drives supported
3
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
DisplayPort version
1.4
USB connector type
USB Type-A, USB Type-C
USB 2.0 ports quantity
3
WiFi-AP antenna jack
2
VGA (D-Sub) ports quantity
0
Microphone in
Yes
Headphone outputs
3
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.3
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Realtek RTL8852CE
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD A620
Supported processor sockets
Socket AM5
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Product colour
Brown
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 slots
1
BIOS
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
ACPI version
5.0
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Video
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Packaging data
Package width
222 mm
Package depth
180 mm
Package height
65 mm
Package weight
860 g
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Bundled software
Norton Internet Security
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery weight
3 g
Number of battery cells
1
Lithium weight per battery
0.07 g
Battery type
CR2032
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
Weight & dimensions
Height
35 mm
Package width
222 mm
Package depth
180 mm
Package height
65 mm
Package weight
860 g
Width
170 mm
Depth
170 mm
Packaging content
Cables included
SATA
Bundled software
Norton Internet Security
Batteries included
Yes
Other features
Height
35 mm
Package width
222 mm
Package depth
180 mm
Package height
65 mm
Package weight
860 g
| Length | 18 cm |
| Width | 22.2 cm |
| Height | 6.5 cm |
| Weight | 0.86 kgs |
