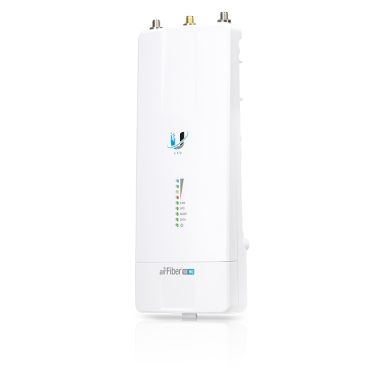

Ubiquiti Networks AirFiber AF-5XHD 1000 Mbit/s Power over Ethernet (PoE)
0 Reviews
| Add your review
In Stock
|
£319.22
£383.06 (Inc. VAT)
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
| 5 GHz | Yes |
| GPS (satellite) | Yes |
| Transmitting power | 29 dBmW |
| Frequency band | 5.150 - 5.250 / 5.740 - 5.850 GHz |
| Modulation | QAM |
| Maximum outdoor range | 200000 m |
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
| Channel bandwidth | 100 MHz |
| Certification | FCC |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating system installed | AirOS |
| Wireless LAN features | |
| Frequency band | 5.150 - 5.250 / 5.740 - 5.850 GHz |
| Modulation | QAM |
| Maximum outdoor range | 200000 m |
| Networking | |
| Internal | No |
| Bandwidth | |
| Channel bandwidth | 100 MHz |
| Certificates | |
| Certification | FCC |
| Features | |
| 5 GHz | Yes |
| GPS (satellite) | Yes |
| Transmitting power | 29 dBmW |
| Frequency band | 5.150 - 5.250 / 5.740 - 5.850 GHz |
| Modulation | QAM |
| Maximum outdoor range | 200000 m |
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
| Channel bandwidth | 100 MHz |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating system installed | AirOS |
| Security | |
| Security algorithms | 256-bit AES |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (max) | 12 W |
| Output voltage | 24 V |
| Output current | 0.041666666666667 |
| Power over Ethernet (PoE) | Yes |
| Input voltage | 20 - 50 V |
| Design | |
| International Protection (IP) code | IP67 |
| Placement | Wall |
| Product colour | White |
| Internal | No |
| Certification | FCC |
| Technical details | |
| Transmitting power | 29 dBmW |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 55 °C |
| Weight & dimensions | |
| Width | 82 mm |
| Depth | 48 mm |
| Weight | 350 g |
| Height | 224 mm |
| Packaging data | |
| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
Ubiquiti Networks AirFiber AF-5XHD 1000 Mbit/s Power over Ethernet (PoE)
| Length | 4.8000 cm |
| Width | 8.2000 cm |
| Height | 22.4000 cm |
| Weight | 1.000000 kgs |
