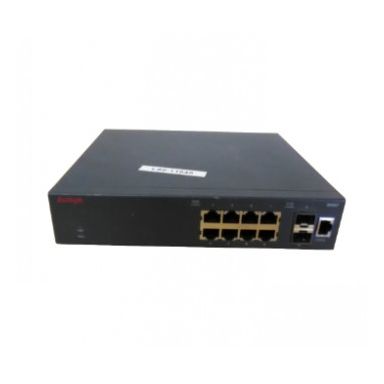

EXTREME NETWORKS ERS3510GT W/ 8 10/100/1000 PORT
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Console port
RJ-45
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Number of VLANs
256
Link aggregation
Yes
Flow control support
Yes
10G support
No
Virtual LAN features
Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
256
Virtual LAN features
Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Data transmission
Number of VLANs
256
Jumbo frames
9216
Throughput
14.9 Mpps
MAC address table
16000 entries
Switching capacity
20 Gbit/s
Number of queues
4
Jumbo frames support
Yes
Performance
Stackable
No
Processor frequency
400 MHz
Mean time between failures (MTBF)
892667 h
Internal memory
128 MB
Flash memory
32 MB
Built-in processor
Yes
Technical details
Form factor
1U
Product colour
Black
Stackable
No
Processor frequency
400 MHz
Mean time between failures (MTBF)
892667 h
Rack mounting
Yes
Built-in processor
Yes
Management features
Traffic shaping
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Optical fiber
Fiber ethernet cabling technology
10GBASE-ER, 10GBASE-LR, 10GBASE-LRM, 10GBASE-SR, 100BASE-FX, 1000BASE-EX, 1000BASE?BX, 1000BASE?ZX
Security
BPDU filtering/protection
Yes
Authentication
Port-based authentication
Security algorithms
802.1x RADIUS, HTTPS, SSH, SSL/TLS
IGMP snooping
Yes
DHCP features
DHCP server, DHCP client
Protocols
Management protocols
SNMP v1/v2/v3, Telnet
Certificates
Safety
IEC 60950, EN 60950, UL60950, CSA22.2, #60950, NOM
Electromagnetic compatibility
CISPR22, Class A/CISPR24, EN55022 Class A/EN55024, FCC Part 15 Class A, ICES-003, AN/NZS 3548, BSMI, MIC, VCCI Class A
Memory
Internal memory
128 MB
Flash memory
32 MB
Design
Wall mountable
Yes
Safety
IEC 60950, EN 60950, UL60950, CSA22.2, #60950, NOM
Form factor
1U
Product colour
Black
Stackable
No
LED indicators
Yes
Electromagnetic compatibility
CISPR22, Class A/CISPR24, EN55022 Class A/EN55024, FCC Part 15 Class A, ICES-003, AN/NZS 3548, BSMI, MIC, VCCI Class A
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power consumption (max)
18 W
AC input voltage
100 - 240 V
AC input frequency
47/63 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 3048 m
Heat dissipation
61 BTU/h
Weight & dimensions
Width
220 mm
Depth
200 mm
Height
44.5 mm
Weight
1.75 kg
