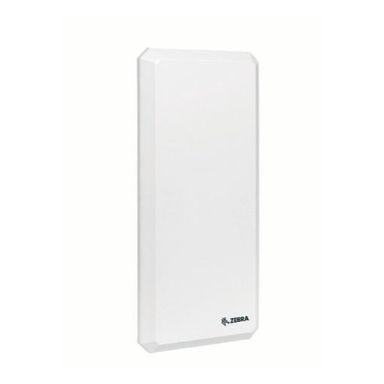

Zebra AN440 network antenna 6 dBi Omni-directional antenna N-type
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Performance
Antenna gain level (max)
6 dBi
Frequency band
0.865 - 0.868- 0.902 - 0.928 GHz
Features
Ultraviolet (UV) resistant
Yes
Front to back ratio
20 dB
Housing material
Acrylonitrile styrene acrylate (ASA)
Isolation
38 dB
International Protection (IP) code
IP67
Connector gender
Female
Antenna gain level (max)
6 dBi
Frequency band
0.865 - 0.868- 0.902 - 0.928 GHz
Antenna type
Omni-directional antenna
Voltage Standing Wave Ratio (VSWR)
1.4:1
Purpose
Indoor & outdoor
Polarization
Circular polarization
Mounting
Ceiling/wall
Product colour
White
Antenna connector type
N-type
Power
Power consumption (max)
10 W
Technical details
Antenna gain level (max)
6 dBi
Frequency band
0.865 - 0.868- 0.902 - 0.928 GHz
Antenna type
Omni-directional antenna
Voltage Standing Wave Ratio (VSWR)
1.4:1
Purpose
Indoor & outdoor
Polarization
Circular polarization
Mounting
Ceiling/wall
Antenna connector type
N-type
Harmonized System (HS) code
85177100
Colour
Product colour
White
Operational conditions
Operating temperature (T-T)
-30 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Weight & dimensions
Weight
1.9 kg
Width
259.1 mm
Depth
33.5 mm
Height
575.1 mm
Zebra AN440 network antenna 6 dBi Omni-directional antenna N-type
