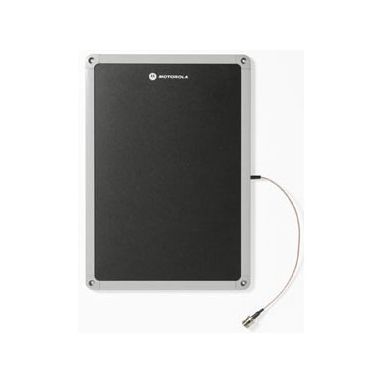

Zebra AN620-SCL71130EU network antenna N-type 4 dBi
In Stock
|
Call For Price (0808 189 1246)
Performance
Antenna gain level (max)
4 dBi
Frequency band
0.902 - 0.928 GHz
Vertical beam width
48°
Horizontal beam width
75°
Features
Connector gender
Female
Antenna gain level (max)
4 dBi
Frequency band
0.902 - 0.928 GHz
Voltage Standing Wave Ratio (VSWR)
1.4:1
Vertical beam width
48°
Purpose
Indoor
Polarization
Circular polarization
Mounting
Wall
Horizontal beam width
75°
Product colour
Black, Silver
Certification
TBD
Antenna connector type
N-type
Technical details
Antenna gain level (max)
4 dBi
Frequency band
0.902 - 0.928 GHz
Voltage Standing Wave Ratio (VSWR)
1.4:1
Vertical beam width
48°
Purpose
Indoor
Polarization
Circular polarization
Mounting
Wall
Horizontal beam width
75°
Antenna connector type
N-type
Harmonized System (HS) code
85177100
Colour
Product colour
Black, Silver
Certificates
Certification
TBD
Operational conditions
Operating temperature (T-T)
-20 - 55 °C
Storage temperature (T-T)
-30 - 65 °C
Weight & dimensions
Weight
1 kg
Width
275 mm
Depth
391 mm
Height
12 mm
Logistics data
Harmonized System (HS) code
85177100
Zebra AN620-SCL71130EU network antenna N-type 4 dBi
| Length | 39.10 cm |
| Width | 27.50 cm |
| Height | 1.20 cm |
| Weight | 1.00 kgs |
