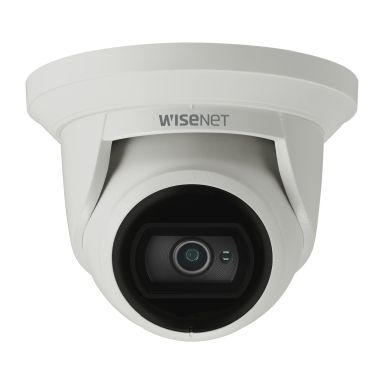

Hanwha ANE-L6012R security camera Dome IP security camera 1920 x 1080 pixels Ceiling

Type

IP security camera

Connectivity technology

Wired

Wide Dynamic Range (WDR)

Yes

Alarm input/output

Yes

Dynamic range

120 dB

IK code

IK10

Form factor

Dome

Product colour

Black, White

Mounting type

Ceiling

International Protection (IP) code

IP66

Housing material

Aluminium, Plastic

Minimum illumination

0.03 lx

Tilt angle range

0 - 75°

Pan range

0 - 350°

White balance

ATW, AWC, Indoor, Manual, Outdoor

Angle of rotation

360°

Camera shutter type

Electronic

Camera shutter speed

1/5 - 1/12000 s

Lens viewing angle, horizontal

108°

Lens viewing angle, vertical

59°

Lens viewing angle, diagonal

127°

Number of Privacy masking areas

6

Sensor type

CMOS

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Number of sensors

1

Number of lenses

1

Maximum aperture number

1.6

Detect distance

28.1 m

Observe distance

11.2 m

Recognize distance

5.6 m

Identify distance

2.8 m

Fixed focus

Yes

Closest focusing distance

1.1 m

Fixed focal length

3 mm

Night vision

Yes

Night vision distance

20 m

LED type

IR

Infra-red wavelength

850 nm

Noise reduction

Yes

Text caption overlay

Yes

Privacy masking

Yes

Flip & mirror

Yes

Gain control type

Manual

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Back Light Compensation (BLC)

Yes

Maximum resolution

1920 x 1080 pixels

Video formats supported

H.264, H.265, M-JPEG

Supported graphics resolutions

640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)

Frame rate

30 fps

Video streaming

Yes

Total megapixels

2 MP

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.3af

Quality of Service (QoS) support

Yes

Streaming method

Multicast, Unicast

Ethernet LAN

Yes

Supported network protocols

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour

Maximum memory card size

32 GB

Compatible memory cards

MicroSD (TransFlash), MicroSDHC

Internal memory

512 MB

Flash memory

256 MB

Ethernet LAN (RJ-45) ports

1

Connectivity technology

Wired

Alert notification type

E-mail

Intelligent Video Surveillance (IVS) system features

Defocus, Line crossing detection, Region entrance detection, Region exiting detection

Video motion detection

Yes

Security algorithms

EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2, SRTP

IP address filtering

Yes

HTTPS encryption

Yes

Active tampering alarm

Yes

Anti-flicker

Yes

Digest authentication

Yes

Power source type

PoE

Power consumption (Power over Ethernet (PoE))

6.6 W

Power consumption (typical)

4.8 W

Operating temperature (T-T)

-30 - 55 °C

Storage temperature (T-T)

-30 - 55 °C

Width

125 mm

Depth

87.4 mm

Height

125 mm

Weight

630 g

Number of cameras

1
