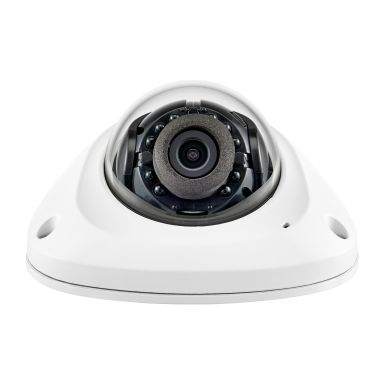

Hanwha ANV-L6023R security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels
In Stock
|
$99.19
$119.03 (Inc. VAT)
Performance
Type
IP security camera
Connectivity technology
Wired
Placement supported
Indoor & outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Dynamic range
120 dB
Design
IK code
IK10
Form factor
Dome
Product colour
White
International Protection (IP) code
IP66
Housing material
Aluminium
Camera
Field of view (FOV) angle
94.8°
Tilt angle range
0 - 67°
White balance
ATW, AWC, Indoor, Manual, Outdoor
Camera shutter speed
1/5 - 1/12000 s
Lens viewing angle, horizontal
94.8°
Lens viewing angle, vertical
50°
Lens viewing angle, diagonal
115°
Number of Privacy masking areas
6
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Lens system
Maximum aperture number
2
Detect distance
35.3 m
Observe distance
14.1 m
Recognize distance
7.1 m
Identify distance
3.5 m
Fixed focal length
3.6 mm
Night vision
Night vision
Yes
Night vision distance
15 m
LED type
IR
Infra-red wavelength
850 nm
Video
Noise reduction
Yes
Privacy masking
Yes
Flip & mirror
Yes
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Back Light Compensation (BLC)
Yes
Noise reduction technology
Smart Super Noise Reduction (SSNR)
Video compression formats
H.264, H.265
Maximum resolution
1920 x 1080 pixels
Video formats supported
H.264, H.265
Supported graphics resolutions
640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate
30 fps
Total megapixels
2 MP
Audio
Audio formats supported
G.711, G.711u, G.726
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1x, IEEE 802.3af
Number of users
6 user(s)
Streaming method
Multicast, Unicast
Ethernet LAN
Yes
Wi-Fi
No
Supported network protocols
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Storage
Maximum memory card size
128 GB
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
SD, SDHC, SDXC
Flash memory
256 MB
RAM capacity
512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Composite video out
1
Connectivity technology
Wired
Security
Alert notification type
E-mail
Intelligent Video Surveillance (IVS) system features
Defocus
Video motion detection
Yes
Security algorithms
EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2
Active tampering alarm
Yes
Network access storage (NAS)
Yes
Power
Power source type
DC, PoE
Power consumption (max)
6.7 W
Power consumption (typical)
5 W
Operational conditions
Operating temperature (T-T)
-30 - 55 °C
Storage temperature (T-T)
-50 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
98.3 mm
Depth
52 mm
Height
100 mm
Weight
295 g
Packaging content
Number of cameras
1
Technical details
Audio input
1
Other features
Video compression formats
H.264, H.265
Hanwha ANV-L6023R security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels
