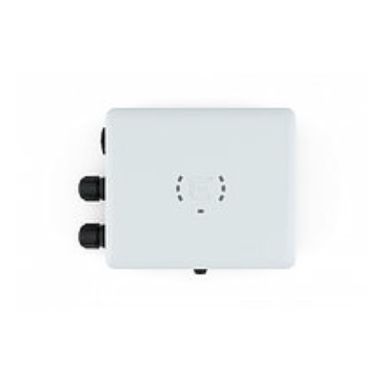

EXTREME NETWORKS AP460i-WR
In Stock
|
Call For Price
(0808 189 1246)
Data transmission
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
GPS (satellite)
Yes
Spread spectrum method
DSSS
Frequency band
5.150 - 5.850 GHz
Number of users
1024 user(s)
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3at
Modulation
DSSS, OFDM
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Certification
IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 No.60950-1-03 AS/NZS
60950.1
RoHS Directive 2011/65/EU
FCC CFR 47 part 15 Class B
FCC Subpart C 15.247
FCC Subpart E 15.407
ICES-003 Class B
IEC/EN 60601-1-2
RSS247
AS/NZS4268 + CISPR32
EN 50385
EN 50581
EN 55011, (Group 1, Class B)
EN 55024
EN 55032, (Class B)
EN 61000-3-2
EN 61000-3-3
EN 62311
EN 300 328
EN 301 489-1
EN 301 489-17
EN 301 893
IR2030/8/3
MIMO type
Multi User MIMO
MIMO
Yes
Wireless LAN features
Frequency band
5.150 - 5.850 GHz
Modulation
DSSS, OFDM
Network
Spread spectrum method
DSSS
Number of users
1024 user(s)
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3at
Certificates
Certification
IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 No.60950-1-03 AS/NZS
60950.1
RoHS Directive 2011/65/EU
FCC CFR 47 part 15 Class B
FCC Subpart C 15.247
FCC Subpart E 15.407
ICES-003 Class B
IEC/EN 60601-1-2
RSS247
AS/NZS4268 + CISPR32
EN 50385
EN 50581
EN 55011, (Group 1, Class B)
EN 55024
EN 55032, (Class B)
EN 61000-3-2
EN 61000-3-3
EN 62311
EN 300 328
EN 301 489-1
EN 301 489-17
EN 301 893
IR2030/8/3
Features
2.4 GHz
Yes
5 GHz
Yes
GPS (satellite)
Yes
Spread spectrum method
DSSS
Frequency band
5.150 - 5.850 GHz
Number of users
1024 user(s)
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.4, IEEE 802.3at
Modulation
DSSS, OFDM
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Bluetooth Low Energy (BLE)
Yes
BeamForming
Yes
Security
Number of SSID supported
16
Security algorithms
WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
Power consumption (max)
19.78 W
Power consumption (typical)
15.23 W
Power over Ethernet (PoE)
Yes
Design
International Protection (IP) code
IP67
Placement
Pole
Product colour
White
LED indicators
Yes
Certification
IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 No.60950-1-03 AS/NZS
60950.1
RoHS Directive 2011/65/EU
FCC CFR 47 part 15 Class B
FCC Subpart C 15.247
FCC Subpart E 15.407
ICES-003 Class B
IEC/EN 60601-1-2
RSS247
AS/NZS4268 + CISPR32
EN 50385
EN 50581
EN 55011, (Group 1, Class B)
EN 55024
EN 55032, (Class B)
EN 61000-3-2
EN 61000-3-3
EN 62311
EN 300 328
EN 301 489-1
EN 301 489-17
EN 301 893
IR2030/8/3
Antenna
Antenna type
Internal
Antenna direction type
Omni-directional
Indication
LED indicators
Yes
Weight & dimensions
Width
260 mm
Depth
192 mm
Weight
1.7 kg
Height
65 mm
Packaging data
Mounting kit
Yes
Packaging content
Mounting kit
Yes
Operational conditions
Operating relative humidity (H-H)
0 - 95%
Operating temperature (T-T)
-40 - 60 °C
Storage temperature (T-T)
-40 - 70 °C
