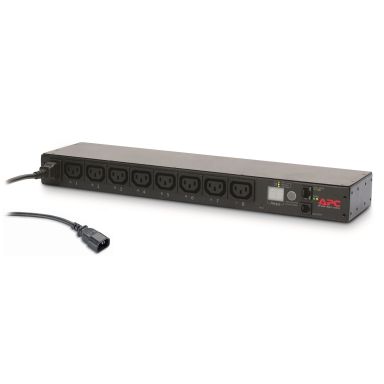

APC AP7920B power distribution unit PDU

PDU types

Metered, Switched

Mounting

Horizontal/Vertical

Product colour

Black

Certification

cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH

Rack capacity

0U/1U

AC outlets quantity

8 AC outlet(s)

AC outlet types

C13 coupler

Power plug

C14 coupler

Input connection type

IEC-320 C14

Cable length

1.98 m

Certification

cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH

Monitoring

Current, Power, Voltage

Outlet control

Lock-out, Recycle, Turn off, Turn on

Cable length

1.98 m

Maximum power

2300 W

Nominal input voltage

200-230 V

Nominal output voltage

208-230 V

Maximum current

10 A

Maximum total current draw per phase

10 A

Maximum input current per phase

10 A

Load capacity

2300 VA

AC input frequency

50 - 60 Hz

Certification

cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH

Compliance certificates

RoHS

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-25 - 65 °C

Storage relative humidity (H-H)

0 - 95%

Operating relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

1 - 15000 m

Weight

2.27 kg

Width

445 mm

Depth

108 mm

Height

44 mm

Package width

470 mm

Package depth

343 mm

Package height

70 mm

Package weight

3.45 kg

Packaging content

Installation Guide, Rack Mounting Brackets, User Manual

Package width

470 mm

Package depth

343 mm

Package height

70 mm

Package weight

3.45 kg

Total carbon footprint (kg of CO2e)

915.89

Compliance certificates

RoHS

Total carbon footprint (kg of CO2e)

915.89
