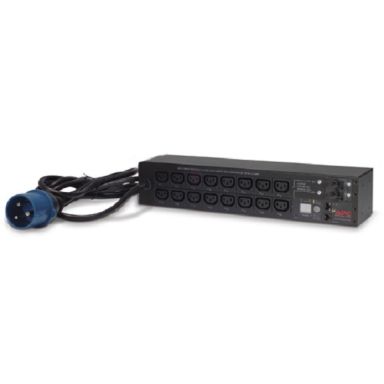

APC AP7922B power distribution unit PDU

Type

Single-phase

PDU types

Metered, Switched

Mounting

Horizontal

Product colour

Black

Certification

CE, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, VDE, REACH

Rack capacity

2U

AC outlets quantity

16 AC outlet(s)

AC outlet types

C13 coupler

Power plug

IEC309

Cable length

3.05 m

Certification

CE, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, VDE, REACH

Monitoring

Current, Power, Voltage

Outlet control

Lock-out, Recycle, Turn off, Turn on

Cable length

3.05 m

Maximum power

7360 W

Nominal input voltage

200-230 V

Nominal output voltage

230 V

Maximum current

32 A

Maximum total current draw per phase

32 A

Maximum input current per phase

32 A

Load capacity

7360 VA

AC input frequency

50 - 60 Hz

Certification

CE, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, VDE, REACH

Compliance certificates

RoHS

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-25 - 65 °C

Storage relative humidity (H-H)

0 - 95%

Operating relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Weight

4.5 kg

Width

445 mm

Depth

114 mm

Height

89 mm

Package width

508 mm

Package depth

368 mm

Package height

140 mm

Package weight

6.55 kg

Packaging content

Documentation CD, Installation Guide, Rack Mounting Brackets

Package width

508 mm

Package depth

368 mm

Package height

140 mm

Package weight

6.55 kg

Compliance certificates

RoHS
