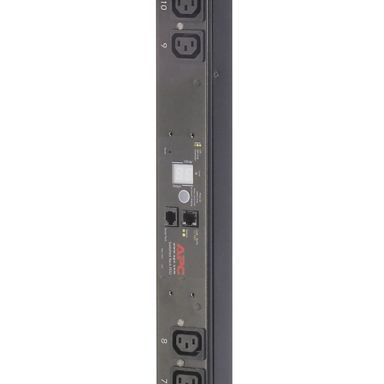

APC AP7950B power distribution unit PDU
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Design
PDU types
MeteredSwitched
Mounting
Vertical
Product colour
Black
Certification
VDE CE EAC EN55022 EN55024 AS/NZS CISPR 22
RoHS compliance
Yes
Rack capacity
0U
Ports & interfaces
AC outlets quantity
13 AC outlet(s)
Power plug
C14 coupler
Output connections
Sixteen IEC 320 C13 outlets
Features
Cable length
3.05 m
LED indicators
Yes
Certification
VDE CE EAC EN55022 EN55024 AS/NZS CISPR 22
RoHS compliance
Yes
Management features
Monitoring
CurrentPowerVoltage
Outlet control
Lock-outRecycleTurn offTurn on
Ergonomics
Cable length
3.05 m
LED indicators
Yes
Power
Maximum power
2300 W
Nominal input voltage
200-230 V
Nominal output voltage
230 V
Maximum current
0.41666666666667
Maximum total current draw per phase
0.41666666666667
Maximum input current per phase
0.41666666666667
Load capacity
2300 VA
AC input frequency
47/63 Hz
Weight & dimensions
Dimensions (WxDxH)
55.6 x 43.9 x 1244.6 mm
Weight
4.3 kg
Package weight
5.2 kg
Package dimensions (WxDxH)
152.4 x 127 x 2133.6 mm
Packaging data
Package weight
5.2 kg
Package dimensions (WxDxH)
152.4 x 127 x 2133.6 mm
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
23 - 113 °F
Operating altitude
0 - 4500 m
Non-operating altitude
0 - 15000 m
APC AP7950B power distribution unit PDU
| Weight | 1.000000 kgs |
