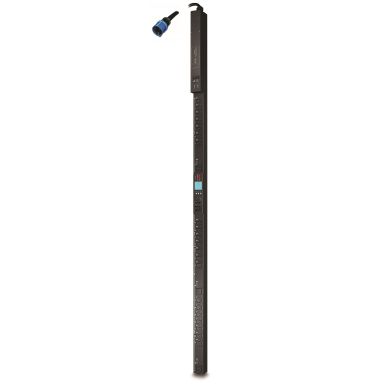

APC Switched Rack PDU power distribution unit (PDU) 24 AC outlet(s)
In Stock
|
£1384.12
£1660.94 (Inc. VAT)
get it next day (UK Mainland Orders)
Design
Type
Single-phase
PDU types
Metered, Metered-by-outlet, Switched
Mounting
Vertical
Product colour
Black
Certification
EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Rack capacity
0U
Ports & interfaces
AC outlets quantity
24 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Power plug
IEC309
Features
Cable length
3 m
Certification
EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Management features
Monitoring
Current, Power, Voltage
Outlet control
Lock-out, Recycle, Turn off, Turn on
Ergonomics
Cable length
3 m
Power
Maximum power
7680 W
Nominal input voltage
230 V
Nominal output voltage
230 V
Power protection features
Overload
Maximum current
32 A
Maximum total current draw per phase
32 A
Maximum input current per phase
32 A
Load capacity
7680 VA
AC input frequency
50 - 60 Hz
Certificates
Certification
EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Weight
8.23 kg
Width
56 mm
Depth
51 mm
Height
1829 mm
Package width
162 mm
Package depth
118 mm
Package height
2038 mm
Package weight
10.5 kg
Packaging data
Package width
162 mm
Package depth
118 mm
Package height
2038 mm
Package weight
10.5 kg
Technical details
Total carbon footprint (kg of CO2e)
8595.81
Compliance certificates
RoHS
Logistics data
Total carbon footprint (kg of CO2e)
8595.81
APC Switched Rack PDU power distribution unit (PDU) 24 AC outlet(s)
| Length | 80.5 cm |
| Width | 6.5 cm |
| Height | 5 cm |
| Weight | 10.60 kgs |
