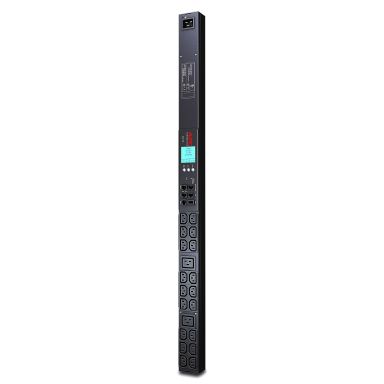

APC AP8858 power distribution unit PDU
In Stock
|
£581.37
£697.64 (Inc. VAT)
get it next day (UK Mainland Orders)
Design
PDU types
Metered
Mounting
Vertical
Product colour
Black
Certification
CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH
Rack capacity
0U
Ports & interfaces
AC outlets quantity
20 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Output connections
18x IEC 320 C13 2x IEC 320 C19
Input connection type
IEC-320 C20
Features
Certification
CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH
Management features
Monitoring
Current, Power, Voltage
Power
Maximum power
3680 W
Nominal input voltage
230 V
Maximum total current draw per phase
16 A
Maximum input current per phase
16 A
Load capacity
3680 VA
AC input frequency
50 - 60 Hz
Certificates
Certification
CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS, REACH
Operational conditions
Operating temperature (T-T)
5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Weight
2.93 kg
Width
56 mm
Depth
44 mm
Height
902 mm
Package width
162 mm
Package depth
107 mm
Package height
1124 mm
Package weight
4.2 kg
Packaging data
Package width
162 mm
Package depth
107 mm
Package height
1124 mm
Package weight
4.2 kg
Technical details
Total carbon footprint (kg of CO2e)
12787.89
Logistics data
Total carbon footprint (kg of CO2e)
12787.89
APC AP8858 power distribution unit PDU
| Length | 44 cm |
| Width | 6.25 cm |
| Height | 4 cm |
| Weight | 3.96 kgs |
