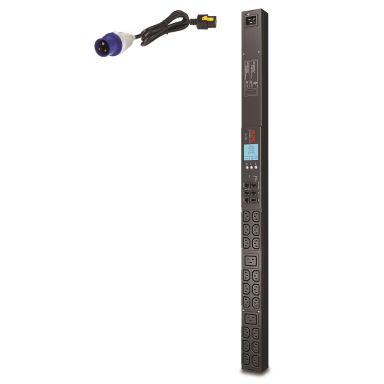

APC AP8858EU3 power distribution unit PDU
In Stock
|
$720.81
$864.97 (Inc. VAT)
Specifications
Design
PDU types
Metered
Mounting
Vertical
Certification
CSA C22.2 No. 60950IEC 60950METI DenanUL 60950-1VDE
RoHS REACH
Rack capacity
0U
Ports & interfaces
AC outlets quantity
20 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Power plug
IEC309
Output connections
18x IEC 320 C13
2x IEC 320 C19
Input connection type
IEC 309 16A 2P+E
Features
Cable length
3 m
Certification
CSA C22.2 No. 60950IEC 60950METI DenanUL 60950-1VDE
RoHS REACH
Management features
Monitoring
CurrentPowerVoltage
Ergonomics
Cable length
3 m
Power
Maximum power
3680 W
Nominal output voltage
230 V
Maximum total current draw per phase
16 A
Maximum input current per phase
16 A
Load capacity
3680 VA
AC input frequency
50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)
56 x 44 x 902 mm
Weight
2.93 kg
Package weight
4.92 kg
Package dimensions (WxDxH)
162 x 107 x 1124 mm
Packaging data
Package weight
4.92 kg
Package dimensions (WxDxH)
162 x 107 x 1124 mm
Operational conditions
Operating temperature (T-T)
5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
5 - 95%
APC AP8858EU3 power distribution unit PDU
| Length | 44.5 cm |
| Width | 6.5 cm |
| Height | 4.3 cm |
| Weight | 4.920000 kgs |
