APC AP8881 power distribution unit PDU
0 Reviews
| Add your review
In Stock
|
£912.90
£1095.48 (Inc. VAT)
| Specifications | |
|---|---|
| Design | |
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | Black |
| Certification | CSA C22.2 No. 60950IEC 60950UL 60950-1VDE |
| RoHS REACH | |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 couplerC19 coupler |

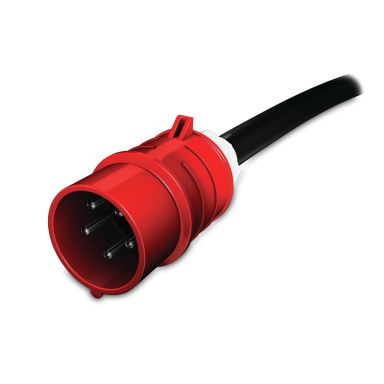

| Power plug | IEC309 |
| Output connections | 36x IEC 320 C13 |
| 6x IEC 320 C19 | |
| Input connection type | IEC 309 16A 3P+N+PE IEC 309 20A 3P+N+E |
| Features | |
| Cable length | 1.83 m |
| Certification | CSA C22.2 No. 60950IEC 60950UL 60950-1VDE |
| RoHS REACH | |
| Management features | |
| Monitoring | CurrentPowerVoltage |
| Ergonomics | |
| Cable length | 1.83 m |
| Power | |
| Maximum power | 11040 W |
| Nominal input voltage | 400 V |
| Nominal output voltage | 230 V |
| Maximum current | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum input current per phase | 16 A |
| Load capacity | 11040 VA |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 56 x 44 x 1791 mm |
| Weight | 6.38 kg |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
APC AP8881 power distribution unit PDU
| Length | 80 cm |
| Width | 6.5 cm |
| Height | 5 cm |
| Weight | 8.880000 kgs |
