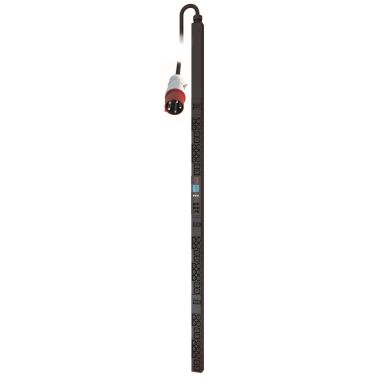

APC AP8886 power distribution unit (PDU) 42 AC outlet(s)

PDU types

Metered

Mounting

Vertical

Product colour

Black

Certification

EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs

Rack capacity

0U

AC outlets quantity

42 AC outlet(s)

AC outlet types

C13 coupler, C19 coupler

Power plug

IEC309

Output connections

30 x IEC 320 C13 12 x IEC 320 C19

Cable length

1.83 m

LED indicators

Yes

Certification

EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs

Monitoring

Current, Power, Voltage

Cable length

1.83 m

LED indicators

Yes

Maximum power

22000 W

Nominal input voltage

400 V

Nominal output voltage

230 V

Power protection features

Overload

Maximum current

32 A

Maximum input current per phase

32 A

Load capacity

22080 VA

AC input frequency

50 - 60 Hz

Certification

EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs

Compliance certificates

RoHS

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-25 - 65 °C

Storage relative humidity (H-H)

5 - 95%

Operating relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Weight

8.72 kg

Width

56 mm

Depth

51 mm

Height

1829 mm

Package width

170 mm

Package depth

112 mm

Package height

2050 mm

Package weight

11.6 kg

Package width

170 mm

Package depth

112 mm

Package height

2050 mm

Package weight

11.6 kg

Total carbon footprint (kg of CO2e)

57837.86

Compliance certificates

RoHS

Total carbon footprint (kg of CO2e)

57837.86
