In Stock
|
$179.74
$215.69 (Inc. VAT)
Ethernet LAN features
Ethernet WAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
DSL features
DSL WAN
Yes
Mobile network
SIM card slot
No
3G/4G USB modem compatibility
No
3G
No
4G
No
Network
Guest access
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN
Yes
Receiver sensitivity
5GHz: 11ac80M MCS11: -58dBm- 11ac80M MCS0: -88dBm 11ac40M MCS11: -61dBm- 11ac40M MCS0: -91dBm 11ac20M MCS11: -63dBm- 11ac20M MCS0: -95dBm 54M: -76dBm- 6M: -95dBm 2.4GHz: 11n40M MCS9: -63dBm- 11n40M MCS0: -89dBm 11n20M MCS8: -67dBm- 11n20M MCS0: -92dBm 54M: -75dBm- 11M : -90dBm- 6M: -93dBm- 1M: -98dBm
Port forwarding
Yes
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Ethernet LAN data rates
10-100-1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Dynamic DNS (DDNS)
Yes
Protocols
DMZ support
Yes
Universal Plug and Play (UPnP)
Yes
Supported network protocols
IPv4- IPv6
DHCP server
Yes
DHCP client
Yes
Management features
Universal Plug and Play (UPnP)
Yes
WPS push button
Yes
Reset button
Yes
Quality of Service (QoS) support
Yes
Performance
Processor frequency
1800 MHz
Processor cores
2
Built-in processor
Yes
Internal memory
256 MB
Flash memory
128 MB
Certificates
Certification
CE- FCC- RoHS
Packaging content
Package type
Box
Cables included
LAN (RJ-45)
AC adapter included
Yes
Quick installation guide
Yes
WAN connection
Ethernet WAN
Yes
DSL WAN
Yes
SIM card slot
No
3G/4G USB modem compatibility
No
WAN connection type
RJ-45
Wireless LAN features
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)
1733 Mbit/s
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)
600 Mbit/s
WLAN data transfer rate (second band)
1733 Mbit/s
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)
Ports & interfaces
USB port
Yes
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
4
DC-in jack
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Security
Security algorithms
64-bit WEP-128-bit WEP-WEP-WPA-WPA-PSK-WPA2
Port-based Network Access Control (PNAC)
Yes
Guest access
Yes
Firewall security
DoS- SPI Firewall- IP and MAC Address Binding
Firewall
Yes
DMZ support
Yes
Design
Product type
Tabletop router
On/off switch
Yes
LED indicators
LAN- Power- Status- System- WAN- WLAN
Product colour
Black
Other features
Internal memory
256 MB
Flash memory
128 MB
Maximum data transfer rate
1 Mbit/s
Antenna
Detachable antenna(s)
Yes
Antenna type
External
Antenna gain level (max)
3 dBi
Transmit power
2.4Gâ¤30dBm- 5Gâ¤30dBm
Features
Processor frequency
1800 MHz
Processor cores
2
Certification
CE- FCC- RoHS
Built-in processor
Yes
Internal memory
256 MB
Flash memory
128 MB
Power
Power source type
DC
Output voltage
12 V
Output current
2 A
Operational conditions
Storage temperature (T-T)
-40 - 90 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
216 mm
Height
36.8 mm
Depth
164 mm
Packaging data
Package type
Box
Cables included
LAN (RJ-45)
AC adapter included
Yes
Quick installation guide
Yes

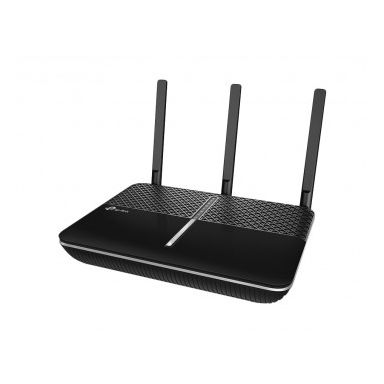

TP-LINK AC2300 Wireless MU-MIMO Gigabit Router
