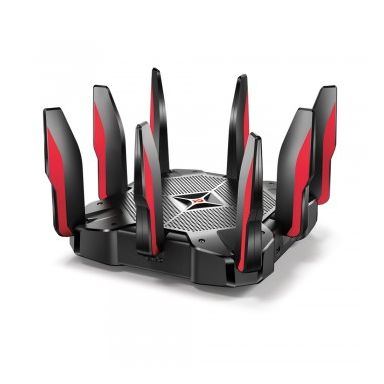

TP-LINK AC5400 MU-MIMO Tri-Band Gaming Router
In Stock
|
Call For Price
(0808 189 1246)
Ethernet LAN features
Ethernet WAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Mobile network
SIM card slot
No
3G
No
4G
No
Network
Guest access
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN
Yes
Receiver sensitivity
5GHz: 11a 6Mbps: -94dBm- 11a 54Mbps: -76dBm 11ac VHT20_MCS0: -96dBm- 11ac VHT20_MCS11: -64dBm 11ac VHT40_MCS0: -93dBm- 11ac VHT40_MCS11: -61dBm 11ac VHT80_MCS0: -89dBm- 11ac VHT80_MCS11: -58dBm- 2.4GHz: 11g 6Mbps: -97dBm- 11g 54Mbps: -79dBm 11n HT20_MCS0: -98dBm- 11n HT20_MCS7: -77dBm 11ac VHT20_MCS11: -66dBm- 11n HT40_MCS0: -95dBm 11n HT40_MCS7: -75dBm- 11ac VHT40_MCS11: -64dBm
Port forwarding
Yes
Networking standards
IEEE 802.11a-IEEE 802.11ac-IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Ethernet LAN data rates
10-100-1000 Mbit/s
Performance
Windows operating systems supported
Yes
Processor frequency
1800 MHz
Processor cores
4
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Firmware upgradeable
Yes
Built-in processor
Yes
Memory card slot(s)
No
Certificates
Certification
CE- FCC- RoHS
Packaging content
Cables included
LAN (RJ-45)
AC adapter included
Yes
Quick installation guide
Yes
WAN connection
Ethernet WAN
Yes
SIM card slot
No
Wireless LAN features
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)
2167 Mbit/s
Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards
802.11a-Wi-Fi 5 (802.11ac)-802.11b-802.11g-Wi-Fi 4 (802.11n)
Ports & interfaces
USB port
Yes
Ethernet LAN (RJ-45) ports
8
DC-in jack
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Memory card slot(s)
No
Management features
WPS push button
Yes
Web-based management
Yes
Reset button
Yes
Quality of Service (QoS) support
Yes
Security
Security algorithms
64-bit WEP-128-bit WEP-WPA-WPA-PSK-WPA2-WPA2-PSK
MAC address filtering
Yes
IP address filtering
Yes
Guest access
Yes
Firewall
Yes
DoS attack prevention
Yes
Filtering
Yes
Stateful Packet Inspection (SPI)
Yes
Protocols
Supported network protocols
IPv4- IPv6
DHCP server
Yes
DHCP client
Yes
Design
Product type
Tabletop router
On/off switch
Yes
LED indicators
Power
Product colour
Black- Red
Software
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Antenna
Antennas quantity
8
Antenna type
External
Transmit power
20 dBmW
Features
Processor frequency
1800 MHz
Processor cores
4
Firmware upgradeable
Yes
Certification
CE- FCC- RoHS
Built-in processor
Yes
Power
Power source type
AC
AC input voltage
100 -240 V
AC input frequency
50 - 60 Hz
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Weight & dimensions
Width
240.5 mm
Height
55.3 mm
Depth
240.5 mm
Packaging data
Cables included
LAN (RJ-45)
AC adapter included
Yes
Quick installation guide
Yes
