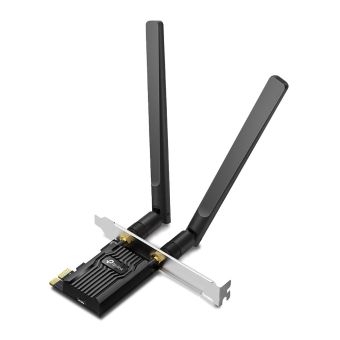

TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
In Stock
|
£30.00
£36.00 (Inc. VAT)
get it next day (UK Mainland Orders)
TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Write Your Own Review
Ports & interfaces
Internal
Yes
Interface
WLAN / Bluetooth
Host interface
PCI Express
Connectivity technology
Wireless
Bandwidth
Maximum data transfer rate
1800 Mbit/s
Wireless LAN features
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
WLAN data transfer rates supported
11,54,300,574,867,1200 Mbit/s
Antenna
Antenna
Yes
Technical details
Product colour
Black
Plug and Play
Yes
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), RoHS
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Network
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
Security algorithms
64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Bluetooth version
5.2
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM
WLAN data transfer rates supported
11,54,300,574,867,1200 Mbit/s
Maximum data transfer rate
1800 Mbit/s
Bluetooth
Yes
Design
Product colour
Black
Antenna
Yes
Plug and Play
Yes
Internal
Yes
Transmitting power (CE)
23 dBm
Transmitting power (FCC)
27 dBm
Operating modes
Infrastructure mode
Component for
PC/Server
Antenna design
External
Software
Windows operating systems supported
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
System requirements
Windows operating systems supported
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width
120.8 mm
Depth
78.5 mm
Height
20.9 mm
Package width
201.5 mm
Package depth
152.5 mm
Package height
41.5 mm
Package weight
220 g
Security
Security algorithms
64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Packaging data
Package width
201.5 mm
Package depth
152.5 mm
Package height
41.5 mm
Package weight
220 g
Mounting brackets included
Yes
Quick installation guide
Yes
Packaging content
Mounting brackets included
Yes
Quick installation guide
Yes
Resource CD
Yes
Bluetooth header cable
Yes
Performance
Security algorithms
64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Plug and Play
Yes
Windows operating systems supported
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
Other features
Bluetooth version
5.2
Bluetooth
Yes
| Weight | 1.00 kgs |
