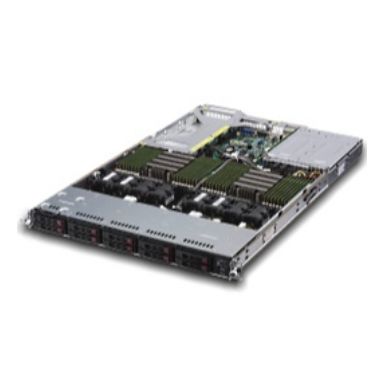

Supermicro SuperServer 1123US-TR4

Hot-swap HDD bays

Yes

PC health monitoring

CPU Fan LED Temperature Voltage

Built-in processor

No

Processor socket

Socket SP3

Processor family

AMD

Number of processors supported

2

Supported RDIMM clock speeds

2666 MHz

Supported memory types

DDR4-SDRAM

Supported DIMM module capacities

4GB 8GB 16GB 32GB 64GB

Number of DIMM slots

32

Memory voltage

1.2 V

Memory form factor

240-pin DIMM

Maximum internal memory

4000 GB

ECC

Yes

Number of storage drives supported

10

Supported storage drive interfaces

Serial Attached SCSI (SAS)-3 Serial ATA III

Hot-swap HDD bays

Yes

Storage drive sizes supported

2.5"

PC health monitoring

CPU Fan LED Temperature Voltage

Backplanes support

Yes

On-board graphics adapter model

Aspeed AST2500

LAN controller

Intel I350-AM4

Ethernet LAN data rates

101001000 Mbit/s

Ethernet LAN

Yes

Ethernet interface type

Fast Ethernet Gigabit Ethernet

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

Number of SATA III connectors

10

VGA (D-Sub) ports quantity

1

Ethernet LAN (RJ-45) ports

4

PCI Express x8 slots

2

PCI Express x16 slots

2

PC health monitoring

CPU Fan LED Temperature Voltage

Backplanes support

Yes

Number of storage drives supported

10

Number of fans

8 fan(s)

Chassis type

Rack (1U)

Backplanes support

Yes

Sustainability certificates

RoHS

Product colour

Black Grey

LED indicators

HDD Heating Network Power

BIOS features

PCI 2.2PCI 2.3

BIOS type

AMI

BIOS memory size

128 Mbit

Number of fans

8 fan(s)

LED indicators

HDD Heating Network Power

Product colour

Black Grey

Chassis type

Rack (1U)

Redundant power supply (RPS) support

Yes

Power supply

1000 W

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

8 - 90%

Width

437 mm

Weight

11.8 kg

Height

43 mm

Depth

707 mm

Package weight

18.6 kg

Package weight

18.6 kg
