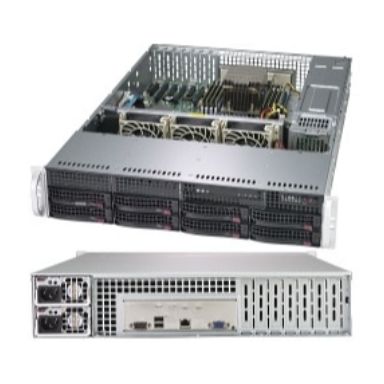

Supermicro SuperServer 2013S-C0R
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
0-1-10
Hot-swap HDD bays
Yes
Management features
Processor
Built-in processor
No
Processor socket
Socket SP3
Number of processors supported
1
Motherboard chipset
Intel SoC
Compatible processor series
AMD EPYC
Design
80 PLUS certification
80 PLUS Platinum
Reset button
Yes
On/off switch
Yes
Number of fans
3 fan(s)
Product colour
Black
Chassis type
Rack (2U)
Memory
Supported RDIMM clock speeds
2666 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
8
Memory voltage
1.2 V
Memory form factor
240-pin DIMM
Maximum RDIMM memory
1000 GB
Maximum internal memory
1000 GB
ECC
Yes
Storage
Number of storage drives supported
8
RAID levels
0-1-10
Hot-swap HDD bays
Yes
Storage drive sizes supported
3.5"
Supported storage drive types
HDD & SSD
Performance
Integrated BMC with IPMI
Yes
Backplanes support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Network
LAN controller
Intel I210
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
Number of SATA III connectors
8
Number of SATA II connectors
8
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x8 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) slots
3
Number of M.2 (M) slots
4
Features
Integrated BMC with IPMI
Yes
Backplanes support
Yes
Technical details
PCI Express x8 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) slots
3
Number of storage drives supported
8
Reset button
Yes
On/off switch
Yes
Number of fans
3 fan(s)
Integrated BMC with IPMI
Yes
Chassis type
Rack (2U)
Backplanes support
Yes
Sustainability certificates
RoHS
Colour
Product colour
Black
Processor special features
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
5.1
Plug and Play
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
3.5 - 9 A
DC output current (+12 V)
61.7 A
Redundant power supply (RPS) support
Yes
Power supply
740 W
80 PLUS certification
80 PLUS Platinum
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Weight
16.1 kg
Height
89 mm
Depth
647 mm
Package weight
31.2 kg
Supermicro SuperServer 2013S-C0R
