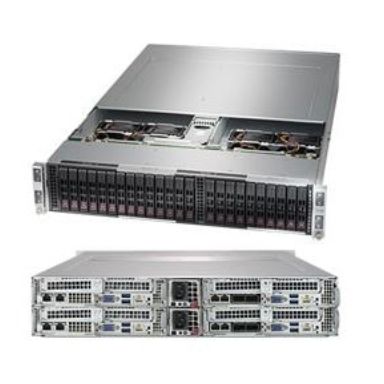

Supermicro SuperServer 2123BT-HTR
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
Hot-swap HDD bays
Yes
Management features
Processor
Built-in processor
No
Processor socket
Socket SP3
Number of processors supported
2
Motherboard chipset
Intel SoC
Compatible processor series
AMD EPYC
Design
80 PLUS certification
80 PLUS Titanium
On/off switch
Yes
Number of fans
4 fan(s)
Fan diameter
8 cm
LED indicators
HDD- LAN- Power
Product colour
Black
Chassis type
Rack (2U)
Memory
Supported RDIMM clock speeds
2666 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
16
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum RDIMM memory
2000 GB
Maximum internal memory
2000 GB
ECC
Yes
Storage
Number of storage drives supported
6
Supported storage drive interfaces
Serial ATA III
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Performance
Integrated BMC with IPMI
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Ports & interfaces
VGA (D-Sub) ports quantity
1
Expansion slots
PCI Express x16 (Gen 3.x) slots
2
Number of M.2 (M) slots
1
Features
Integrated BMC with IPMI
Yes
Technical details
PCI Express x16 (Gen 3.x) slots
2
Number of storage drives supported
6
On/off switch
Yes
Number of fans
4 fan(s)
Fan diameter
8 cm
Integrated BMC with IPMI
Yes
Chassis type
Rack (2U)
Sustainability certificates
RoHS
Power
Power supply dimensions (WxDxH)
45 x 480 x 40 mm
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+12 V)
183.33 A
Redundant power supply (RPS) support
Yes
Power supply
2200 W
80 PLUS certification
80 PLUS Titanium
Colour
Product colour
Black
Indication
LED indicators
HDD- LAN- Power
Processor special features
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 30 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
438 mm
Weight
24.7 kg
Height
88 mm
Depth
724 mm
