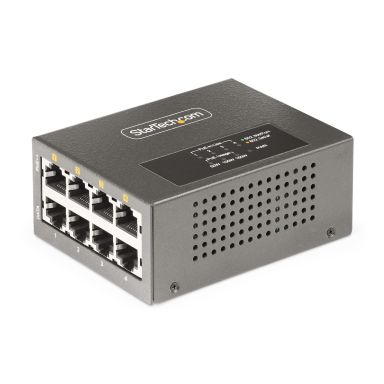

StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged
In Stock
|
$339.43
$407.32 (Inc. VAT)
Network
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Auto MDI/MDI-X
Yes
Power over Ethernet (PoE)
Yes
Ethernet LAN data rates
10,100,1000,2500,5000 Mbit/s
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Cable types supported
Cat5e, Cat6, Cat6a
Chipset
Microsemi - PD69208T4, Microsemi - PD69200R
Features
Wall mountable
Yes
Maximum operating distance
100 m
Product colour
Grey
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
LED indicators
Status
Housing material
Metal
Jumbo frames support
Yes
Jumbo frames
9000
Ports & interfaces
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
8
RJ-45 input ports
4
RJ-45 output ports
4
Power
Output current
3.3 A
Total Power over Ethernet (PoE) budget
160 W
AC adapter output voltage
54 V
Input current
2.5 A
AC adapter input voltage
100 - 240 V
Technical details
Number of products included
1 pc(s)
Package width
170 mm
Package height
90 mm
Power over Ethernet (PoE)
Yes
Input current
2.5 A
Ethernet LAN data rates
10,100,1000,2500,5000 Mbit/s
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), UKCA
Operational conditions
Storage temperature (T-T)
-10 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Package weight
1.7 kg
Package depth
300 mm
Package width
170 mm
Package height
90 mm
Weight
278 g
Width
70 mm
Depth
94 mm
Height
39 mm
Packaging data
Package weight
1.7 kg
Package depth
300 mm
Package width
170 mm
Package height
90 mm
Packaging content
Quick installation guide
Yes
AC adapter included
Yes
Number of products included
1 pc(s)
Indication
LED indicators
Status
Logistics data
Master (outer) case width
475 mm
Master (outer) case length
370 mm
Master (outer) case height
325 mm
Products per master (outer) case
10 pc(s)
StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged
