Network | |
---|---|
Fiber optic connector | LC |
Data transfer rate | 100 Mbit/s |
Auto-negotiation | Yes |
Link Loss Carry Forward (LLCF) supported | Yes |
Link Loss Return (LLR) supported | Yes |
Fiber ethernet cabling technology | 100BASE-FX |
Converter input interface | 100Base-TX |
Networking standards | IEEE 802.1Q |
Duplex system | Full- Half |
Converter output interface | 100Base-FX |
Auto MDI/MDI-X | Yes |
Maximum data transfer rate | 100 Mbit/s |
Technical details | |
Wavelength | 1310 nm |
Maximum transfer distance | 2000 m |
Fiber mode structure | Multi-mode |
Fiber cable diameters supported (core/cladding) | 50/125-62.5/125 µm |
Tx power (min) | -22.5 dBmW |
Tx power (max) | -14 dBmW |
Rx power (min) | -32 dBmW |
Rx power (max) | -14 dBmW |
Internal | No |
Data transfer rate | 100 Mbit/s |
Sustainability certificates | RoHS |
Harmonized System (HS) code | 85176990 |
Performance | |
Auto-negotiation | Yes |
Wavelength | 1310 nm |
Maximum transfer distance | 2000 m |
Fiber mode structure | Multi-mode |
Fiber cable diameters supported (core/cladding) | 50/125-62.5/125 µm |
Tx power (min) | -22.5 dBmW |
Tx power (max) | -14 dBmW |
Rx power (min) | -32 dBmW |
Rx power (max) | -14 dBmW |
Ports & interfaces | |
Connectivity technology | Wired |
Ethernet LAN (RJ-45) ports | 1 |
Fiber ports quantity | 1 |
Fiber optic connector | LC |
Indication | |
LED indicators | Yes |
Design | |
DIN rail mounting | Yes |
LED indicators | Yes |
Product colour | Grey |
Internal | No |
Colour | |
Product colour | Grey |
Weight & dimensions | |
Width | 31.8 mm |
Depth | 91.4 mm |
Height | 21.6 mm |

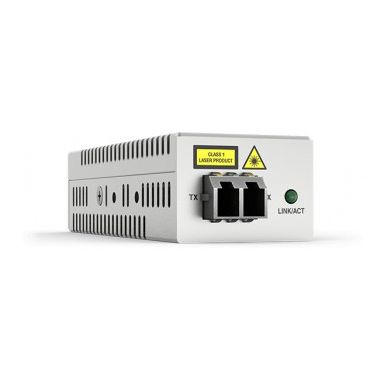

Allied Telesis AT-DMC100/LC-50 network media converter 100 Mbit/s 1310 nm Multi-mode Grey
