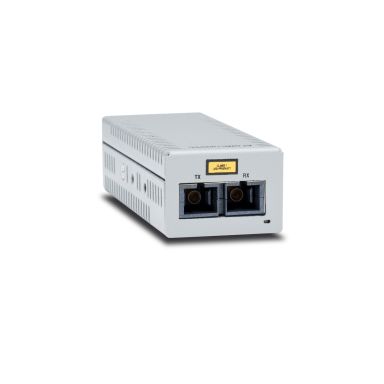

Allied Telesis At-Dmc1000/Sc-30 Network Media Converter

Allied Telesis At-Dmc1000/Sc-30 Network Media Converter

In Stock In Stock
Brand: Allied Telesis
SKU: AT-DMC1000/SC-30
Condition: NEW
Delivery: Next Day*
Product Type: Network Converters
$122.50
$147.00 (Inc. VAT)
Network
Fiber optic connector
SC
Data transfer rate
1000 Mbit/s
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (1 Gbps)
1488000 pps
VLAN support
Yes
Converter input interface
1000Base-T
Networking standards
IEEE 802.1Q
Ethernet interface type
Gigabit Ethernet
Duplex system
Full- Half
Converter output interface
1000Base-SX
Auto MDI/MDI-X
Yes
Maximum data transfer rate
1000 Mbit/s
Technical details
Wavelength
850 nm
Maximum transfer distance
550 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125-62.5/125 µm
Tx power (min)
-9.5 dBmW
Tx power (max)
-4 dBmW
Rx power (min)
-17 dBmW
Internal
No
Data transfer rate
1000 Mbit/s
Ports & interfaces
Connectivity technology
Wired
Fiber optic connector
SC
Indication
LED indicators
Yes
Performance
Wavelength
850 nm
Maximum transfer distance
550 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125-62.5/125 µm
Tx power (min)
-9.5 dBmW
Tx power (max)
-4 dBmW
Rx power (min)
-17 dBmW
Design
LED indicators
Yes
Product colour
Grey
Internal
No
Power
Power consumption (typical)
1.5 W
Colour
Product colour
Grey
Weight & dimensions
Width
31.8 mm
Depth
91.4 mm
Weight
113 g
Height
21.6 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
