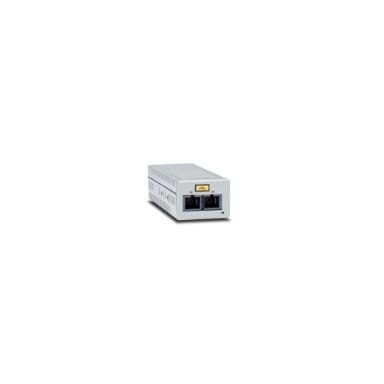

Allied Telesis AT-DMC1000/SC-50 network media converter 1000 Mbit/s 850 nm Multi-mode
In Stock
|
Call For Price
(0808 189 1246)
Network
Fiber optic connector
SC
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
1488000 pps
Packet forwarding rate (1 Gbps)
14880 pps
Rate limiting
Yes
Cable types supported
Fiber
Converter input interface
1000Base-T
Ethernet LAN data rates
1000 Mbit/s
Duplex system
Full- Half
Converter output interface
1000Base-SX
Auto MDI/MDI-X
Yes
Maximum data transfer rate
1000 Mbit/s
Technical details
Wavelength
850 nm
Maximum transfer distance
550 m
Fiber mode structure
Multi-mode
Internal
No
Harmonized System (HS) code
85176990
Ports & interfaces
Fiber optic connector
SC
DC-in jack
Yes
Performance
Wavelength
850 nm
Maximum transfer distance
550 m
Fiber mode structure
Multi-mode
Design
Internal
No
Weight & dimensions
Width
31.8 mm
Depth
91.4 mm
Weight
113.39 g
Height
21.6 mm
Allied Telesis AT-DMC1000/SC-50 network media converter 1000 Mbit/s 850 nm Multi-mode
