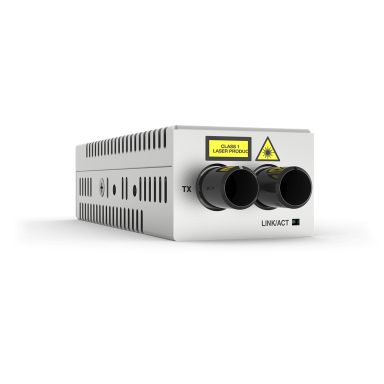

Allied Telesis At-Dmc1000/St-30 Network Media Converter
0 Reviews
| Add your review
In Stock
|
£107.99
£129.59 (Inc. VAT)
| Network | |
|---|---|
| Fiber optic connector | ST |
| Data transfer rate | 1000 Mbit/s |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| VLAN support | Yes |
| Converter input interface | 1000Base-T |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full- Half |
| Converter output interface | 1000Base-SX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125-62.5/125 µm |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Internal | No |
| Data transfer rate | 1000 Mbit/s |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Fiber optic connector | ST |
| Indication | |
| LED indicators | Yes |
| Performance | |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125-62.5/125 µm |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Design | |
| LED indicators | Yes |
| Product colour | Grey |
| Internal | No |
| Power | |
| Power consumption (typical) | 1.5 W |
| Colour | |
| Product colour | Grey |
| Weight & dimensions | |
| Width | 31.8 mm |
| Depth | 91.4 mm |
| Weight | 113 g |
| Height | 21.6 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
