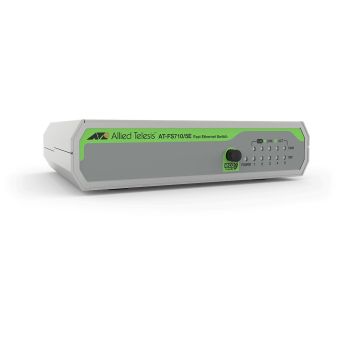

Allied Telesis FS710/5E Unmanaged Fast Ethernet (10/100) Green,Grey
In Stock
|
$32.86
$39.43 (Inc. VAT)
Performance
Packet buffer memory
0.096 MB
Auto-negotiation
Yes
Technical details
Product colour
Green- Gray
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Network
Networking standards
IEEE 802.3-IEEE 802.3az-IEEE 802.3u-IEEE 802.3x
Full duplex
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Data transmission
Jumbo frames
2048
Throughput
0.74 Mpps
Packet buffer memory
0.096 MB
MAC address table
2000 entries
Switching capacity
1 Gbit/s
Jumbo frames support
Yes
Certificates
Safety
UL60950-1- CSAC22.2 â60950-1- EN60950-1(TUV)- CE
Certification
VCCI Class BFCC Class BEN55032 Class ACISPR 32 Class BRCM Class B
Memory
Packet buffer memory
0.096 MB
Design
Wall mountable
Yes
Safety
UL60950-1- CSAC22.2 â60950-1- EN60950-1(TUV)- CE
Product colour
Green- Gray
LED indicators
Activity-Link-Power
Certification
VCCI Class BFCC Class BEN55032 Class ACISPR 32 Class BRCM Class B
Indication
LED indicators
Activity-Link-Power
Power
Power consumption (max)
1.7 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
131 mm
Depth
101 mm
Height
30 mm
Weight
380 g
Allied Telesis FS710/5E Unmanaged Fast Ethernet (10/100) Green,Grey
