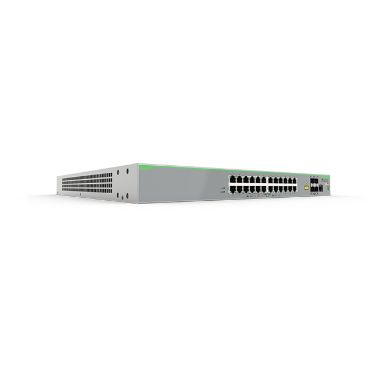

Allied Telesis AT-FS980M/28DP-50 Managed L3 Fast Ethernet (10/100) Grey Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Traffic classification
Yes
ARP inspection
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
Switch layer
L3
Configuring Location Settings (CLI)
Yes
Ports & interfaces
Copper ethernet cabling technology
1000BASE-T
SFP module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Network
IGMP snooping
Yes
Copper ethernet cabling technology
1000BASE-T
Networking standards
IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1v, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Routing entries
16
Port mirroring
Yes
Link aggregation
Yes
IP routing
Yes
Flow control support
Yes
10G support
No
Virtual LAN features
Private VLAN, Tagged VLAN, Voice VLAN
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Private VLAN, Tagged VLAN, Voice VLAN
Performance
Stackable
Yes
Noise level
49 dB
Memory type
DDR2-SDRAM
Internal memory
512 MB
Flash memory
128 MB
Harmonized System (HS) code
85176990
Export Control Classification Number (ECCN)
5A992C
Technical details
Product colour
Grey
Stackable
Yes
Noise level
49 dB
Rack mounting
Yes
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Data transmission
Jumbo frames
10000
Latency (1 Gbps)
3.24 µs
MAC address table
16000 entries
Switching capacity
12.8 Gbit/s
Jumbo frames support
Yes
Forwarding rate
9.52 Mpps
Security
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
Guest VLAN, MAC-based authentication, Web-based authentication
Security algorithms
3DES, AES, DES, EAP, HTTPS, MD5, SHA-1, SHA-2, SHA-256, SNMP, SSH-2, SSL/TLS
IGMP snooping
Yes
Access Control List (ACL)
Yes
Password protection
Yes
DHCP features
DHCP snooping
Multicast features
Multicast support
Yes
Protocols
Routing protocols
RIP, RIP-2
Certificates
Certification
FCC B, EN55022 A, CISPR22:2006, VCCI A, C-Tick, EN 55024, UL 60950-1 Ed2, C22.2 NO.60950-1, EN 60950-1 Ed2, IEC60950-1 Ed.2, EN60950-1 Ed2
CE, cULus, TUV
RoHS
Memory
Memory type
DDR2-SDRAM
Internal memory
512 MB
Flash memory
128 MB
Design
Product colour
Grey
Stackable
Yes
LED indicators
Yes
Certification
FCC B, EN55022 A, CISPR22:2006, VCCI A, C-Tick, EN 55024, UL 60950-1 Ed2, C22.2 NO.60950-1, EN 60950-1 Ed2, IEC60950-1 Ed.2, EN60950-1 Ed2
CE, cULus, TUV
RoHS
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power consumption (max)
520 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Number of power supply units
2
Input current
8 A
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
375 W
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 90%
Operating altitude
0 - 3048 m
Heat dissipation
1800 BTU/h
Weight & dimensions
Width
440 mm
Depth
425 mm
Height
44 mm
Packaging data
Cables included
AC
Logistics data
Harmonized System (HS) code
85176990
Packaging content
Cables included
AC
Allied Telesis AT-FS980M/28DP-50 Managed L3 Fast Ethernet (10/100) Grey Power over Ethernet (PoE)
