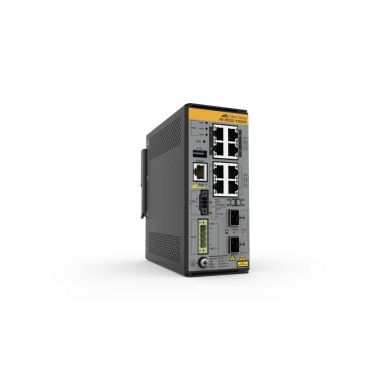

Allied Telesis IE220-10GHX Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
In Stock
|
£1485.75
£1782.90 (Inc. VAT)
get it next day (UK Mainland Orders)
Allied Telesis IE220-10GHX Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Write Your Own Review
Management features
Traffic shaping
Yes
Traffic classification
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
Switch layer
L2
Configuring Location Settings (CLI)
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Gigabit Ethernet (copper) ports quantity
10
USB 2.0 ports quantity
1
Network
Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3bt
Full duplex
Yes
VLAN support
Yes
Number of VLANs
4094
Link aggregation
Yes
Flow control support
Yes
10G support
No
IGMP snooping
Yes
Data transmission
Throughput
41.7 Mpps
Packet buffer memory
2 MB
MAC address table
16000 entries
Switching capacity
56 Gbit/s
Jumbo frames support
Yes
Number of VLANs
4094
Security
BPDU filtering/protection
Yes
Authentication
MAC-based authentication, Port-based authentication
Security algorithms
802.1x RADIUS
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client, DHCP snooping
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMPv1/v2c/v3
Design
Wall mountable
Yes
International Protection (IP) code
IP30
DIN rail mounting
Yes
Product colour
Grey
Housing material
Aluminium, Metal
Rack mounting
No
Performance
Internal memory
512 MB
Flash memory
128 MB
Export Control Classification Number (ECCN)
5A992C
Packet buffer memory
2 MB
Harmonized System (HS) code
8517.62.0050
Power
Power consumption (max)
18.5 W
Input voltage
37 - 57 V
Power source
DC/PoE
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE)
Yes
Power over Ethernet 4PPoE (PoE++) ports quantity
2
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Weight & dimensions
Width
65 mm
Depth
137 mm
Height
155 mm
Technical details
Product colour
Grey
Housing material
Aluminium, Metal
Rack mounting
No
Memory
Packet buffer memory
2 MB
Internal memory
512 MB
Flash memory
128 MB
Other features
Input voltage
37 - 57 V
Logistics data
Harmonized System (HS) code
8517.62.0050
| Length | 13.7 cm |
| Width | 6.5 cm |
| Height | 15.5 cm |
| Weight | 1.00 kgs |
