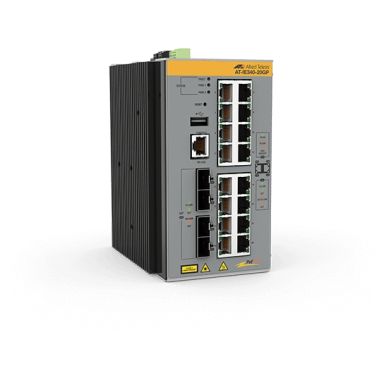

Allied Telesis L3 INDUST ETHERNET SWITCH
0 Reviews
| Add your review
In Stock
|
£1547.67
£1857.20 (Inc. VAT)
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic shaping | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| IGMP snooping | Yes |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Policy-based routing | Yes |
| Virtual LAN features | Private VLAN- Tagged VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Private VLAN- Tagged VLAN |
| Data transmission | |
| Number of VLANs | 4094 |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 40 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 29.7 Mpps |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Stackable | No |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992C |
| Fanless | Yes |
| Technical details | |
| Product colour | Grey |
| Stackable | No |
| Housing material | Aluminium- Metal |
| Rack mounting | No |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Security | |
| BPDU filtering/protection | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | BGP- OSPF- RIP |
| Certificates | |
| Electromagnetic compatibility | EN 55024- EN 61000-6-2 |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Grey |
| Stackable | No |
| LED indicators | Yes |
| Housing material | Aluminium- Metal |
| Electromagnetic compatibility | EN 55024- EN 61000-6-2 |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 271 W |
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 18 - 57 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 15 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 105.8 BTU/h |
| Weight & dimensions | |
| Width | 91 mm |
| Depth | 139 mm |
| Height | 153 mm |
| Weight | 2.34 kg |
