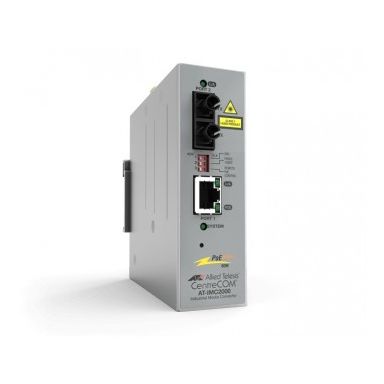

Allied Telesis AT-IMC2000TP/SC-980 network media converter 1000 Mbit/s 850 nm Multi-mode
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Network | |
|---|---|
| Fiber optic connector | SC |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Packet forwarding rate (100 Mbps) | 148880 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Converter output interface | 1000Base-SX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| International Protection (IP) code | IP30 |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Rx power (max) | -3 dBmW |
| Internal | No |
| Sustainability certificates | RoHS |
| Performance | |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Rx power (max) | -3 dBmW |
| Ports & interfaces | |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Indication | |
| LED indicators | Yes |
| Design | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Grey |
| Internal | No |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 70 W |
| Colour | |
| Product colour | Grey |
| Weight & dimensions | |
| Width | 111 mm |
| Depth | 96 mm |
| Weight | 748 g |
| Height | 35 mm |
Allied Telesis AT-IMC2000TP/SC-980 network media converter 1000 Mbit/s 850 nm Multi-mode
