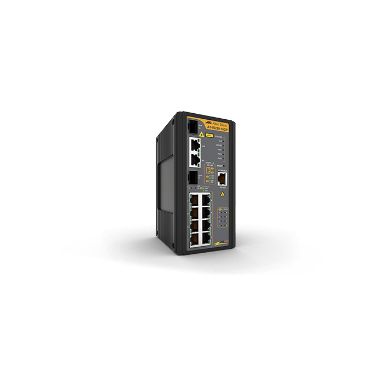

Allied Telesis AT-IS230-10GP-80 Managed L2 Gigabit Ethernet (10/100/1000) Black Power over Ethernet
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
Switch type
Managed
Quality of Service (QoS) support
Yes
MIB support
RFC 1212, RFC 1213, RFC 1239, RFC 2819, RFC 2863, RFC 3418, RFC 4022, RFC 4113
Switch layer
L2
Ports & interfaces
Copper ethernet cabling technology
1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Fiber optic connector
SFP
Network
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Copper ethernet cabling technology
1000BASE-T
Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Number of VLANs
4094
Link aggregation
Yes
Flow control support
Yes
10G support
No
Virtual LAN features
Multicast VLAN, Stacked VLAN, Tagged VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4094
Virtual LAN features
Multicast VLAN, Stacked VLAN, Tagged VLAN
Data transmission
Number of VLANs
4094
Jumbo frames
9000
Packet buffer memory
4 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Number of queues
8
Jumbo frames support
Yes
Forwarding rate
14.88 Mpps
Optical fiber
Fiber optic connector
SFP
Fiber ethernet cabling technology
100BASE-X, 1000BASE-X
Performance
Packet buffer memory
4 MB
Buffer size
512 KB
Harmonized System (HS) code
85176990
Technical details
Product colour
Black
Housing material
Metal
Rack mounting
No
Security
Loop protection
Yes
Authentication
Port-based authentication
SSH/SSL support
Yes
Security algorithms
3DES, 802.1x RADIUS, DES, RSA, SHA-1, SNMP, SNMPv3, SSH, SSH-2, SSL/TLS
IGMP snooping
Yes
DHCP features
DHCP relay
Multicast features
Multicast support
Yes
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
Certificates
Safety
CSA C22.2 No. 61010-2-201, IEC60950-1, UL60950-1, UL61010-2-201
Electromagnetic compatibility
AS/NZS CISPR 32, A; EN55024; EN55032, A; EN61000-6-2; EN61000-6-4, A; FCC 15B, A; ICES-003, 6, A; VCCI, A
Certification
CE, FCC, RCM, TUV, VCCI, RoHS, WEEE
Memory
Packet buffer memory
4 MB
Design
Wall mountable
Yes
International Protection (IP) code
IP30
DIN rail mounting
Yes
Safety
CSA C22.2 No. 61010-2-201, IEC60950-1, UL60950-1, UL61010-2-201
Product colour
Black
LED indicators
Yes
Housing material
Metal
Electromagnetic compatibility
AS/NZS CISPR 32, A; EN55024; EN55032, A; EN61000-6-2; EN61000-6-4, A; FCC 15B, A; ICES-003, 6, A; VCCI, A
Certification
CE, FCC, RCM, TUV, VCCI, RoHS, WEEE
Rack mounting
No
Indication
LED indicators
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Power
Power consumption (max)
139.3 W
DC input voltage
24 - 48 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Storage relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
10 - 95%
Operating altitude
0 - 3000 m
Heat dissipation
475.3 BTU/h
Weight & dimensions
Width
74 mm
Depth
105 mm
Height
152 mm
Weight
1.2 kg
Logistics data
Harmonized System (HS) code
85176990
Allied Telesis AT-IS230-10GP-80 Managed L2 Gigabit Ethernet (10/100/1000) Black Power over Ethernet
