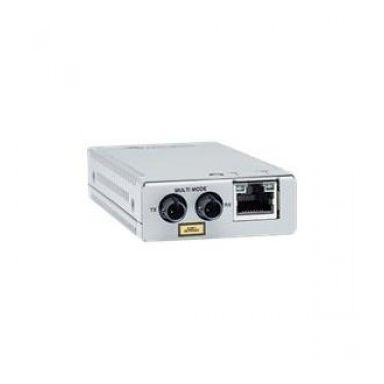

Allied Telesis AT-MMC2000/ST-60 network media converter 850 nm Multi-mode
In Stock
|
Call For Price
(0808 189 1246)
Network
Fiber optic connector
ST
Jumbo frames support
Yes
Store-and-forward
Yes
Jumbo frames
10000
VLAN support
Yes
Networking standards
IEEE 802.1Q
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Converter output interface
1000Base-SX
Auto MDI/MDI-X
Yes
Technical details
Wavelength
850 nm
Maximum transfer distance
500 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125-62.5/125 µm
Tx power (min)
-9.5 dBmW
Tx power (max)
-4 dBmW
Rx power (min)
-17 dBmW
Rx power (max)
-3 dBmW
Internal
No
Performance
Jumbo frames support
Yes
Store-and-forward
Yes
Wavelength
850 nm
Maximum transfer distance
500 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125-62.5/125 µm
Tx power (min)
-9.5 dBmW
Tx power (max)
-4 dBmW
Rx power (min)
-17 dBmW
Rx power (max)
-3 dBmW
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
2
Fiber optic connector
ST
DC-in jack
Yes
Indication
LED indicators
LAN- Power- System
Design
Safety
UL60950-1- EN60950-1
LED indicators
LAN- Power- System
Internal
No
Power
Input voltage
12 V
Weight & dimensions
Width
549 mm
Depth
101.6 mm
Weight
170 g
Height
21.8 mm
Allied Telesis AT-MMC2000/ST-60 network media converter 850 nm Multi-mode
