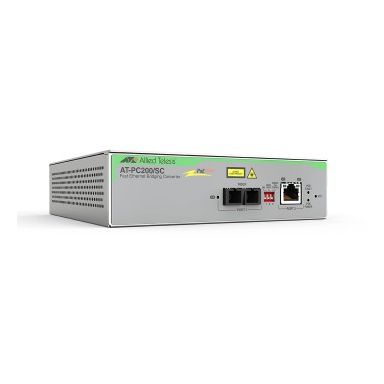

Allied Telesis AT-PC200/SC-60 network media converter 100 Mbit/s 1310 nm Multi-mode
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Network | |
|---|---|
| Fiber optic connector | SC |
| Jumbo frames support | Yes |
| Data transfer rate | 100 Mbit/s |
| Packet forwarding rate (100 Mbps) | 148880 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| VLAN support | Yes |
| Converter input interface | 10Base-T-100Base-T |
| Networking standards | IEEE 802.1Q-IEEE 802.3at |
| Converter output interface | 100Base-FX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 100 Mbit/s |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 2000 m |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125-62.5/125 µm |
| Tx power (min) | -19 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -32 dBmW |
| Rx power (max) | -3 dBmW |
| Internal | No |
| Data transfer rate | 100 Mbit/s |
| Performance | |
| Jumbo frames support | Yes |
| Wavelength | 1310 nm |
| Maximum transfer distance | 2000 m |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125-62.5/125 µm |
| Tx power (min) | -19 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -32 dBmW |
| Rx power (max) | -3 dBmW |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Fiber optic connector | SC |
| Indication | |
| LED indicators | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Grey |
| Internal | No |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 35 W |
| AC input frequency | 50 - 60 Hz |
| Colour | |
| Product colour | Grey |
| Weight & dimensions | |
| Width | 155 mm |
| Depth | 149 mm |
| Weight | 748 g |
| Height | 40 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Allied Telesis AT-PC200/SC-60 network media converter 100 Mbit/s 1310 nm Multi-mode
